Two-way lighting with an on-state indicator
A two-way circuit with indicators combines lighting control from two locations with an indication of the switched state. This can be useful when the controlled light is out of view. The small indicator represents the intended electrical switching state; it does not prove that the main lamp produces light or that the installation is dead.
This guide explains the existing drawing with two indicator mechanisms. It uses an economy two-way topology and additional neutral connections for the indicators. Other illuminated switches may use different connections, so the actual manufacturer's diagram remains essential.
Construction and operation
Indication, location or permanent illumination?
Load-state indication lights when the switched lighting connection is supplied in this example. Locator illumination helps people find a control in darkness and may, for example, light when the main light is off. Permanent illumination remains on independently of ordinary switching.
These functions are different. An illuminated mechanism is not necessarily suitable for load-state indication merely because it looks similar. Its contacts, lighting element and connections must support the intended function.
How the illustrated arrangement works
Each two-way switch has one common and two alternative contacts. The commons of S1 and S2 are linked together. One alternative contact at each mechanism connects to the same permanent line; the other connects to the shared switched-line path serving the light.
When one switch selects line and the other the light connection, the linked commons complete the supply path. When both select the same side, the light is off. Operating either switch changes the lighting state.
Both indicators connect between switched line and neutral, electrically in parallel with the main light. Their supply therefore follows its switched state regardless of which operating location was used last.
Conventional two-way switching connects the contacts differently. Indicator circuit describes the additional indication function; it does not prescribe one topology for every product.
Circuit diagram and explanation
One switching position with indicator
Indicators follow the main switched output; they do not detect a failed lamp. Red shows a direct connection to line. This functional model is not a test for absence of voltage.
One switching position with an indicator electrically parallel to the main lamp.
How to read this diagram
One changeover switch is used here as a one-way switch. It controls the main lamp from exactly one position; the second changeover contact is unused. The indicator is electrically parallel to the main lamp and has its own neutral connection.
In this drawing contact 1 receives line. Common contact C feeds the main lamp and the indicator. This functional arrangement does not describe the internal wiring of every real indicator switch.
The indicator shows the energised switched output. It is not an orientation light or a lamp-failure monitor. An intact indicator may stay lit if the main lamp fails. An unlit indicator does not prove absence of voltage.
Two switching positions, both with indicators
Indicators follow the main switched output; they do not detect a failed lamp. Red shows a direct connection to line. This functional model is not a test for absence of voltage.

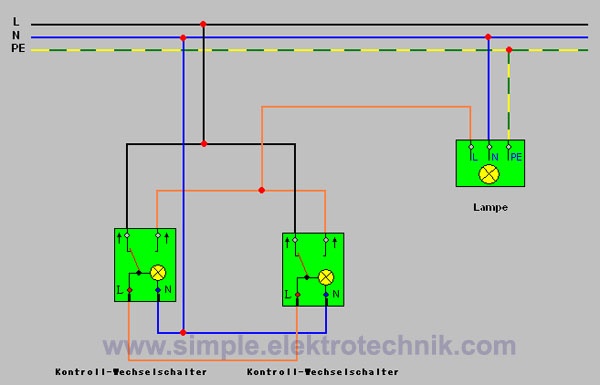

Two switching positions each have an indicator parallel to the main lamp, neutral, and a separate feed from the same line rail.
How to read this diagram
This second version has two switching positions. Both switches have an indicator and a neutral connection. Their separate line feeds come from the same upper supply rail. Common terminals C are linked; the other contacts share the switched-lamp output.
When one switch selects line and the other selects the lamp output, the main lamp and both indicators are on. The indicators are electrically parallel to the main lamp. When both switches select the same branch, all three light elements are off.
The indicator shows the energised switched output. It is not an orientation light or a lamp-failure monitor. An intact indicator may stay lit if the main lamp fails. An unlit indicator does not prove absence of voltage.
Related: indicator switches
Connection principles and practical details
Connection principles and limitations
Choose the intended indication mode before selecting equipment. Confirm that the actual mechanism provides the required connections. Any necessary neutral must belong to the associated circuit. PE must never substitute for neutral, and neutral must not be borrowed from an unrelated circuit.
An additional socket needs proper supply, protective connections and suitable protection. It must not be connected between permanent and switched line. A universal six-core rule would also be misleading without knowing the cable routing.
LED loads and some illuminated mechanisms can interact through small currents, producing unwanted glow or flicker. Assess the actual combination using its manufacturer's information. An arbitrary resistor, terminal bridge or larger protective device is not a universal remedy.
Ordinary intermediate switches cannot simply be inserted into the illustrated economy topology. Additional operating locations require a supported design. See Economy two-way switching for the distinction; its unresolved national-permission question is not replaced here by a general approval.
Terminal work requires appropriate competence and authority under secured isolation. The applicable five safety rules, equipment instructions and verification of protective measures form part of that work.
Functional checks
Functional checks: assess the light and both indicators
This table explains only the illustrated contact logic. Line selection means that a common selects permanent line; light selection means that it selects the switched-line path. These are not fixed rocker directions.
| S1 selection | S2 selection | Main-light connection | Indicators in the illustrated principle |
|---|---|---|---|
| Line selection | Line selection | Not supplied through the switching path | Both off |
| Line selection | Light selection | Supplied | Both on |
| Light selection | Line selection | Supplied | Both on |
| Light selection | Light selection | Not supplied through the switching path | Both off |
After the required electrical verification, check from different starting positions that either switch changes the light and both indicators follow the intended response. No special operating sequence should be necessary.
An indicator that stays on, ignores the other operating location or works only in certain positions may reflect a different illumination mode, incorrect contact identification or a faulty device. The symptom alone does not establish the cause. Investigate competently under secured isolation.
Advantages and limitations
In the illustrated parallel arrangement, an indicator can remain lit even when the main lamp has failed. It monitors neither light output nor protective measures. Conversely, an unlit indicator does not prove absence of voltage: the indicator itself or its supply may have failed.
Benefits
- Suitable indicators make the switched state of remote lighting visible at the controls.
- Two operating locations remain independently usable.
- Compatible equipment can provide the indication without a separate electronic control system.
Limitations
- Indication and switching must be designed together; additional conductors and terminals may be required.
- An indicator is neither a lamp-failure monitor nor a voltage detector.
- Compatibility with LED loads, extra locations and additional functions depends on the products.
Questions and related information
Does an indicator always need neutral?
The illustrated arrangement does. Other products or indication methods can differ. This is not a universal connection rule for every illuminated switch.
Can an ordinary switch simply be replaced by an illuminated one?
Only if the actual connections, available conductors and chosen mechanism support the required function. An identical rocker does not establish electrical interchangeability.
Does a lit indicator prove the room is illuminated?
No. The illustrated indicator follows supply to the switched connection. A failed main lamp can remain dark while the indicator lights.
