Choosing a lighting circuit
Choose a lighting circuit by describing the required operation first. How many positions should control the same lighting? Are there two independent groups? Should the light stay on or switch off after a period? Only then assess which arrangement fits the installation.
More components do not automatically make a better solution. This comparison explains conventional functions and the questions worth answering before a change. It supports learning and planning rather than authorising connections in an existing installation.

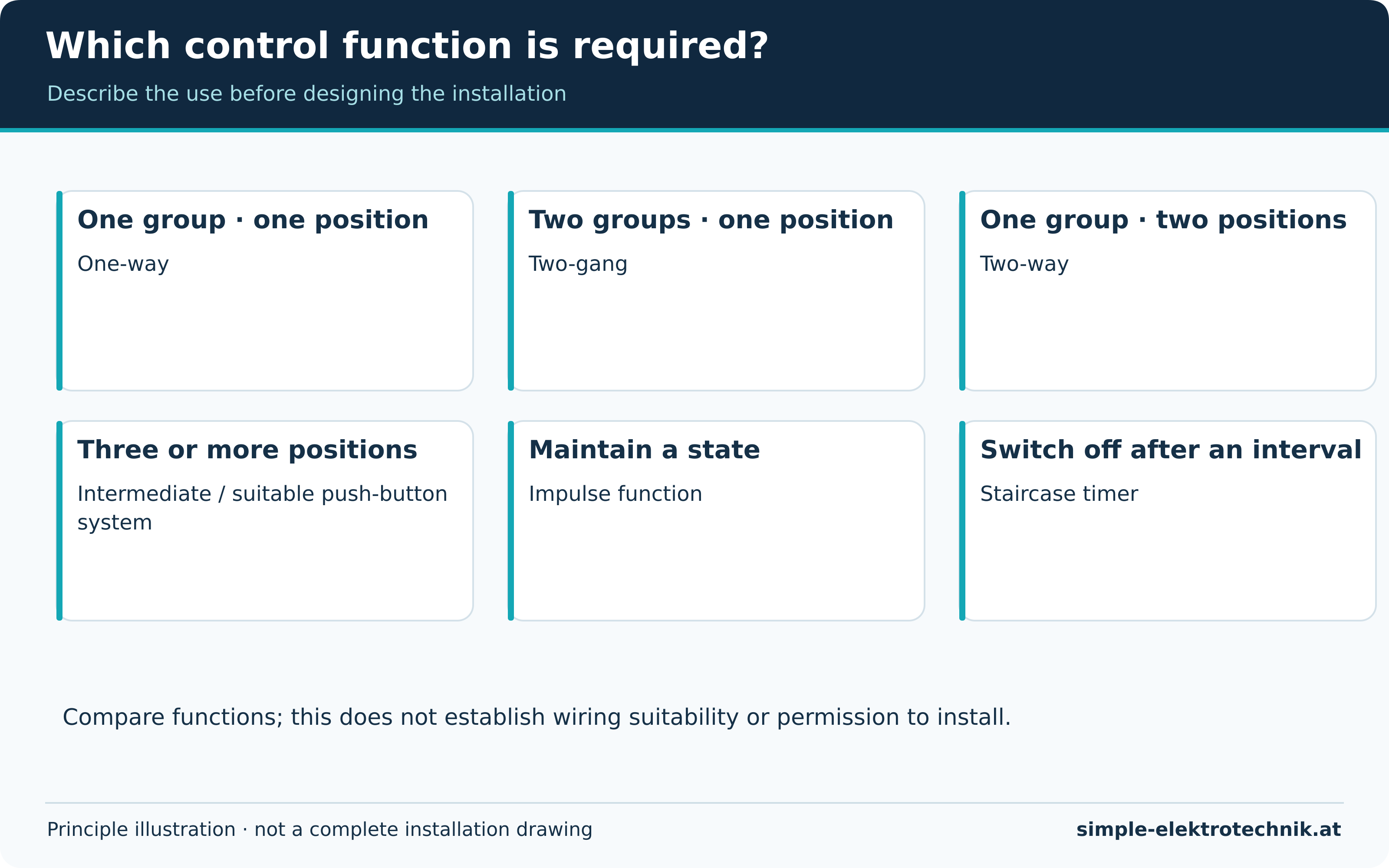

Compare the main functions
| Required function | Typical arrangement | Distinguishing feature |
|---|---|---|
| One lighting group, one control position | One-way switching | One contact controls the group |
| Two groups at one position | Two-gang switching | Two independent functions, not lamps connected electrically in series |
| One group from two positions | Two-way switching | Two changeover switches and two travellers |
| One group from three or more positions | Intermediate switching | Changeover switches at the ends, intermediate switches between them |
| Multiple momentary controls, maintained state | Impulse-relay circuit | Push-buttons operate a state-holding device |
| Push-button operation with timed switch-off | Staircase timer | Timer function and product-specific modes |
| Visible indication of the switched state | Suitable indicator arrangement | Indication must match the circuit topology and purpose |
The alternative two-way circuit is a particular two-position arrangement. Whether it saves conductors depends on the real routing and required functions. Its name is not enough to establish a saving or approve its use.
One lighting group or two?
A lighting group can contain one or several suitable luminaires that operate together. The common control function matters more than the number of individual lamps.
For two independent groups at one position, two-gang switching is a straightforward option. If both groups also need operation from multiple positions, one two-gang switch alone cannot provide the complete arrangement. Each group's control must be planned accordingly.
The German term Serienschaltung can be misleading. In this installation context it means two switching functions in one control position. It does not describe lamps connected electrically in series. English terms also vary by country; this category explains the depicted function explicitly.
How many control positions?
A conventional two-way circuit is an understandable choice for two positions. An intermediate circuit extends the arrangement to three or more. Each intermediate switch connects the two traveller paths straight through or crossed over.
A push-button circuit with an impulse relay puts the maintained switching function in a control device. Push-buttons provide suitable commands. This can be convenient with several positions, but introduces another component and its installation requirements.
There is no universal number of positions at which one solution always becomes mandatory or cheaper. Cable routes, existing wiring, space, loads and future changes all influence the decision.
Maintained light or timed light?
A basic impulse function changes between on and off for each valid pulse. A staircase timer instead switches on for a defined period. Retriggering, early switch-off, permanent-on modes and advance warning are additional product-dependent functions.
Describe the actual use rather than relying on a room name. A corridor may need maintained lighting. A short time period is unsuitable if users regularly stay longer without appropriate extension or other suitable control.
An ordinary staircase timer is not automatically an emergency-lighting or other safety system. Such functions need their own appropriate design.
Consider loads, existing wiring and usability
Lamp wattage alone does not establish switch suitability. LED drivers can create a different switching demand from an equally rated resistive load. Match the switch or relay to the actual lighting; a headline current marking does not replace the relevant manufacturer's load information.
For an existing installation, establish the available conductors and their functions. A protective conductor must not become an extra switched core. Borrowing a neutral from another circuit is not a shortcut to a new function.
Consider access and clarity as well. Can users reach the controls? Is the expected response understandable? Does suitable manual operation remain available? An indicator may help explain state, but it does not verify electrical safety.
Questions to settle before choosing
- Which luminaires should operate together and which independently?
- What response is expected at every control position?
- Is automatic switch-off required or unwanted?
- Which existing equipment and routes can be retained appropriately?
- What load, installation and verification conditions apply to the selected products?
A state table can establish the intended function before installation. Mains work requires the necessary competence and appropriate verification. The switching-device guides explain individual components; these circuit guides explain how they work together.
Where do fluorescent circuits fit?
The inductive, capacitive and DUO guides explain conventional fluorescent equipment. Their question is different: how do the lamp, ballast and associated components operate together?
They therefore form a separate section. Those explanations do not establish universal LED-retrofit compatibility. Any conversion depends on the actual luminaire and an appropriate approved replacement arrangement. These English articles retain the technical and national context of the original site rather than silently becoming UK or US installation instructions.
Sources and further documentation
Electrical safety: scope, competence and precautions
Put electrical safety first.
- These explanations and simplified diagrams support learning. They are not complete installation designs, site-specific risk assessments or a substitute for competent professional assessment.
- Electrical work can be life-threatening. It requires the competence and authorisation appropriate to the actual task, installation and jurisdiction.
- Errors and omissions can occur. Check the actual equipment documentation, applicable requirements and the complete installation before relying on an example; a working device is not proof of electrical safety.
- Personal protective equipment must suit the assessed hazards and task. It does not replace isolation, appropriate tools, competence or a safe system of work.
- Do not work on exposed live parts on the basis of these guides. Identify every relevant source, isolate it, secure against reconnection and prove dead using suitable equipment and procedures before access.
- Responsibilities for design, installation and verification must be established for the actual work. A website statement does not determine liability or remove duties under applicable law.
- This summary is not exhaustive. Where the circuit, condition or protective arrangement is uncertain, obtain suitable professional assistance before work proceeds.
- Complete the required inspection, testing and documentation before use, and maintain the installation and equipment appropriately.
