One-way lighting circuit: operation and diagram
A one-way lighting circuit controls one luminaire or a group of luminaires from one position. Its switch opens or closes the intended operating current path. It is a useful starting point for understanding conventional lighting circuits.
Examples include a small store room or a lighting group operated at one entrance. For two positions, continue with two-way switching. Two independent groups at one position are covered by two-gang switching.
Construction and operation
Construction and operation
The single-pole example switches the line-conductor path to the luminaire. Closing the contact completes the intended operating path; opening it interrupts that path. Neutral and any required protective conductor are arranged separately according to the installation and equipment.
A maintained switch holds its position after operation. A momentary push-button instead returns when released. This simple function does not need a separate state-holding relay.
A group may contain several suitable luminaires that operate together. That does not permit an unlimited number: the load, switch, wiring and protection must suit the actual installation.
Circuit diagram and explanation
Diagram and switching states

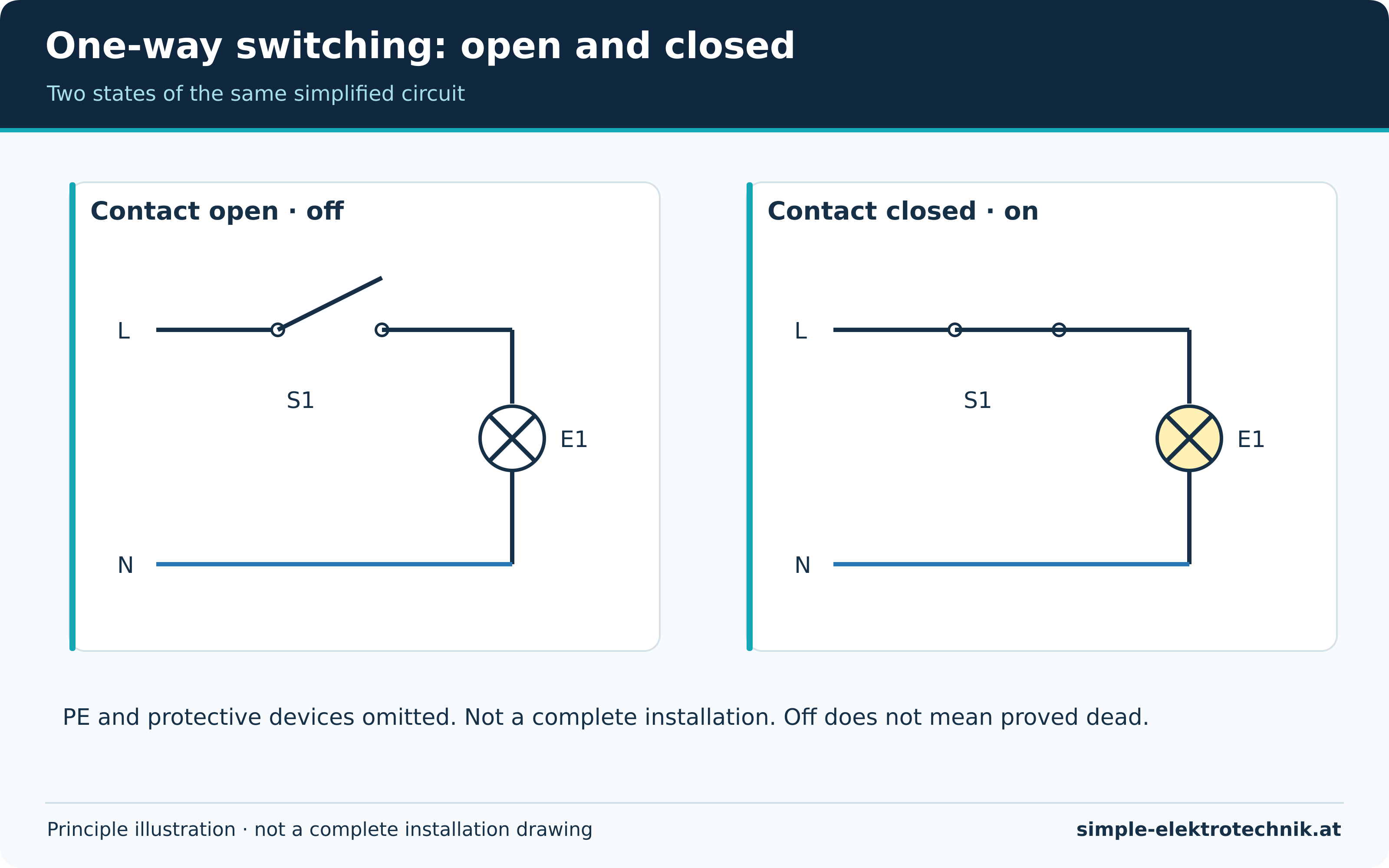

The new principle illustration places two states side by side: an open contact and a closed contact. S and E identify the switch and luminaire within the explanation. They are component references, not a physical terminal layout.
| Contact state | Intended operating path | Expected lamp response |
|---|---|---|
| Open | Interrupted at the switch | Off |
| Closed | Complete through the serviceable lamp | On |
This table assumes a correctly supplied, serviceable example circuit. A real lamp may remain dark because of a fault even when the switch is closed. Darkness therefore does not prove absence of voltage.
The principle drawing shows the operating path between L and N. Protective devices and PE are omitted for clarity. Any required protective-conductor connection remains necessary according to the actual luminaire construction.
Connection principles and practical details
Wiring principle and selecting equipment
A suitable changeover switch can provide one-way switching using its common contact and the appropriate switched contact according to the manufacturer's instructions. That alone does not create a two-way circuit; two suitable devices must cooperate in the correct arrangement for that function.
Actual terminal markings matter. Two conductor entry holes may belong to the same terminal rather than two independent switched contacts. Counting visible holes cannot establish the internal arrangement.
Selection includes:
- The actual contact function and product connection diagram.
- Suitability for the lighting load, including switching behaviour.
- Appropriate conductors, connections, mounting and environment.
- Clear circuit identification and the necessary protective measures.
Do not substitute a switched neutral for the intended switched line path or repurpose a protective conductor. Detailed implementation depends on the installation and applicable local requirements. These illustrations do not provide a procedure for working live.
Functional checks
Functional checks and limitations
After proper installation and electrical verification, operation should produce the intended change consistently. Lighting should operate reliably in the on state and exhibit the intended behaviour when off. Unexpected flickering, noise, heating or intermittent operation warrants investigation rather than acceptance as normal.
This operational check is different from electrical verification. Repeated switching cannot replace tests of protective measures. Work on the installation requires the appropriate competence and precautions, including the five safety rules as applicable to the actual task.
A lighting switch in the off position is not a universal means of isolation. Other parts can remain live, and the contact position does not prove that the work area is dead.
Advantages and limitations
Advantages and limitations
Advantages: The function is easy to understand, directly operated and needs no additional controller for a simple lighting group. It provides a useful foundation for reading more complex circuits.
Limitations: The basic arrangement has one control position. Independent groups, additional positions or timing require another or extended arrangement. A simple operating function does not prove an existing switch suitable for a new lamp load.
Questions and related information
Common questions
Is a changeover switch the same thing as a one-way circuit?
No. The switch is a component; the circuit is the complete application. The same suitable component can perform different tasks depending on its connections.
Why does switching off not make work safe?
Interrupting the lighting function does not establish the state of every relevant part. Safe work requires the necessary precautions and verification at the actual place of work. This English explanation retains the site's installation context and does not substitute another country's wiring rules.
