Impulse relays: operation, selection and connections
An impulse relay changes its maintained state after a suitable brief control command. In a basic on/off application, one valid pulse switches on and the next switches off. The push-button need not remain pressed.
This guide explains the device, its inputs, contacts and selection. The complete arrangement of multiple buttons and lighting is covered by the push-button circuit guide. Automatic switch-off after an interval is a different basic function.
Construction and operation
Construction and operation
A suitable pulse changes the associated contact state. Depending on the product, the state may be retained mechanically or electronically. That does not establish one universal power consumption or power-return response.

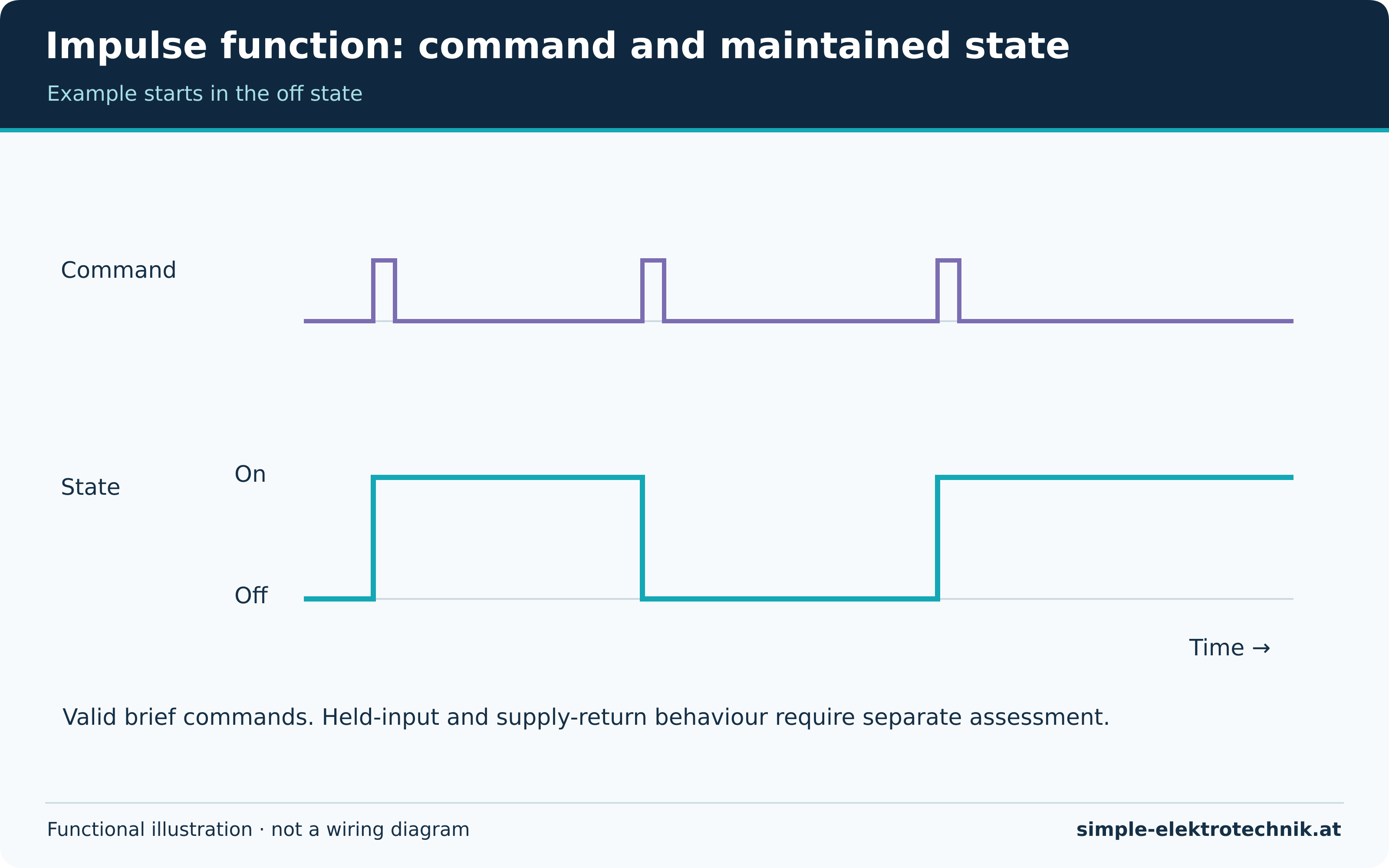

The functional illustration separates commands from the load function. A command changes the state; the suitable output switches the load. Arrows do not represent conductors or specify a control voltage.
An ordinary monostable relay typically follows its control input and returns to its defined rest state when that input is removed. External self-holding would be a circuit arrangement, not an inherent property of every relay.
Device illustrations and operating principle
Variants, connections and selection
Variants and selection
Products differ in supply, input type, number of contacts, central commands and mounting. Some need a continuous supply for electronics. Do not transfer a supply arrangement shown for one model to another.
| Feature | Establish |
|---|---|
| Input | Permitted voltage or required contact and pulse conditions |
| Illuminated buttons | Permitted combined indicator current |
| Output | Contact type, internal supply reference or volt-free construction |
| Load | Actual lighting, inrush and switching frequency |
| Supply return | Intended state and any initialisation |
The illustrated toggle sequence is a basic example, not every product's complete operating description. Central-off, multiple-channel or timer functions must be explicitly provided.
Understand the connections
A1/A2 may identify control connections; other terminals may supply electronics or belong to load contacts. Use the actual diagram. A box marked K1 is not a universal physical terminal layout.
Volt-free load contacts need the appropriate external circuit. That differs from an output internally referenced to a supply. Separate functional paths still have product-specific insulation and separation requirements.
Do not assemble supplies or inputs indiscriminately from different circuits. PE retains its protective role. Appropriate design includes conductor identification, protective measures and mounting; a functional illustration cannot establish them.
Functional checks
Checks and symptoms
After installation and required electrical verification, check each intended control position. A suitable brief command should cause the selected state change once. The basic maintained state remains after release.
Multiple changes, no response or unintended switching have several possible causes: input conditions, buttons, indicator elements, settings or device faults. One symptom does not identify the cause. Assess held inputs and supply interruptions only under appropriate product-specific conditions.
A click or mechanical indication does not alone establish correct contact operation. A sticking contact or load-path fault may produce another result. Operational checks do not replace verification of protective measures.
Advantages and limitations
Advantages and limitations
Momentary commands can control a maintained output, with multiple suitable buttons in the intended arrangement. Additional functions depend on the product.
The system gains another component on which operation depends. Inputs, load and installation must match. The name guarantees neither conductor savings, a particular energy consumption nor silent operation.
Questions and related information
Common questions
Is it a staircase timer?
Not in its basic toggle function. A staircase timer switches off after a period. Assess multifunction devices by their selected mode.
Will any button work?
No. Contact function, input requirements and combined indicator loading must suit the actual instructions.
