Staircase lighting timer: operation and control
A staircase-lighting timer switches lighting on for a defined period after a valid push-button command. At the end of that period, the controller switches off according to its selected function. The push-button does not determine the duration; the timer does.
This differs from a basic impulse-relay circuit, where each valid pulse changes the maintained state. A staircase may need different control arrangements depending on its use. Select the duration and any additional functions for that use rather than applying one universal number of minutes.
Construction and operation
Construction and operation
The example contains suitable push-buttons, a timer and a common lighting group. The buttons operate the intended input, while an appropriate output switches the load.
Control and load paths have different tasks, but that does not imply that push-buttons operate at safe extra-low voltage. Supply, input type and output must suit the actual product and installation.
Timers may be electromechanical or electronic. Neither construction alone establishes all additional functions. Power-return behaviour and the response to a held or faulty push-button are also product-specific.
Functional drawing and timing example

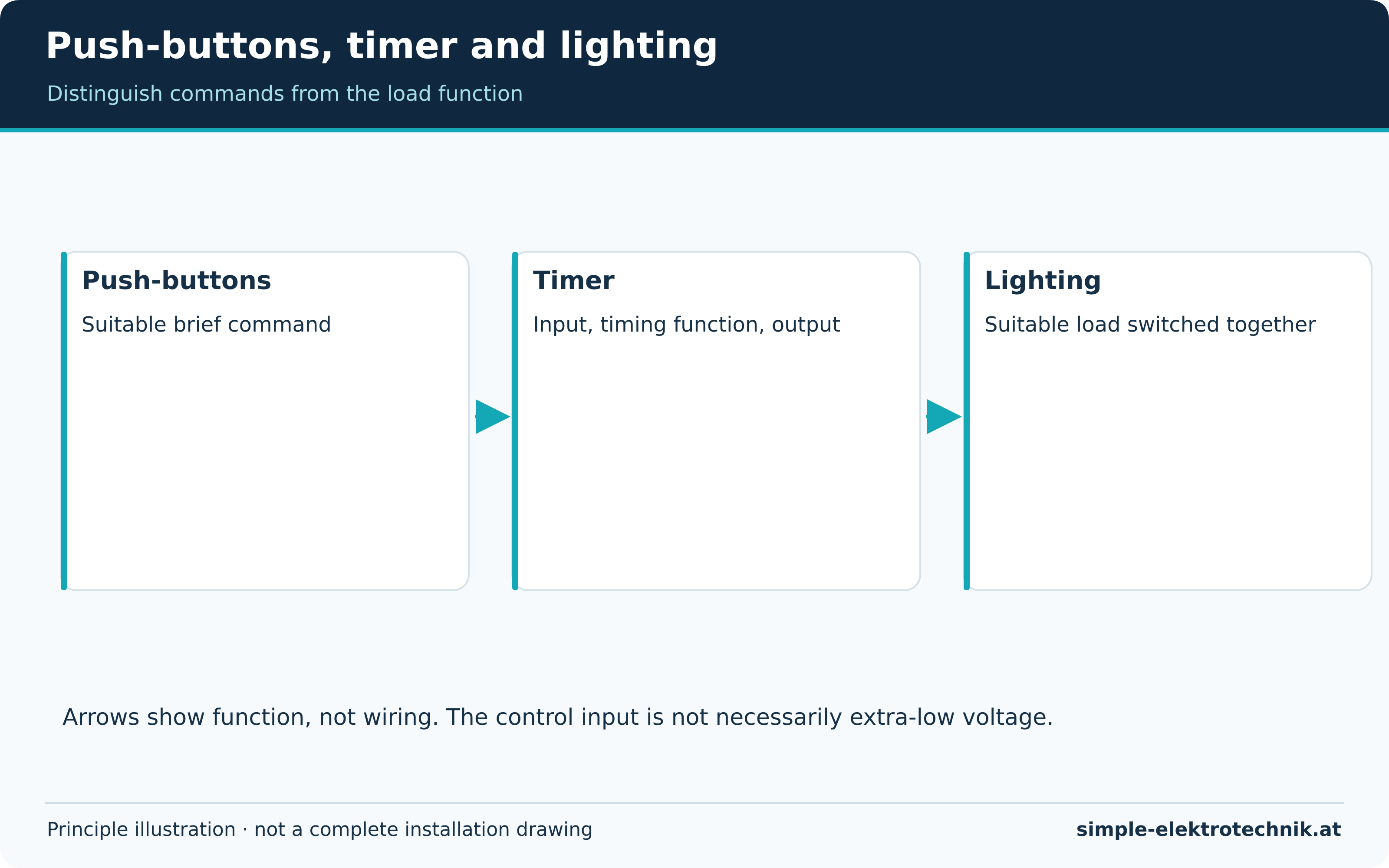

The new functional drawing shows push-buttons, timer and lighting. Its arrows represent commands and effects rather than electrical conductors. A separate timing illustration shows a valid brief command and the resulting on interval.

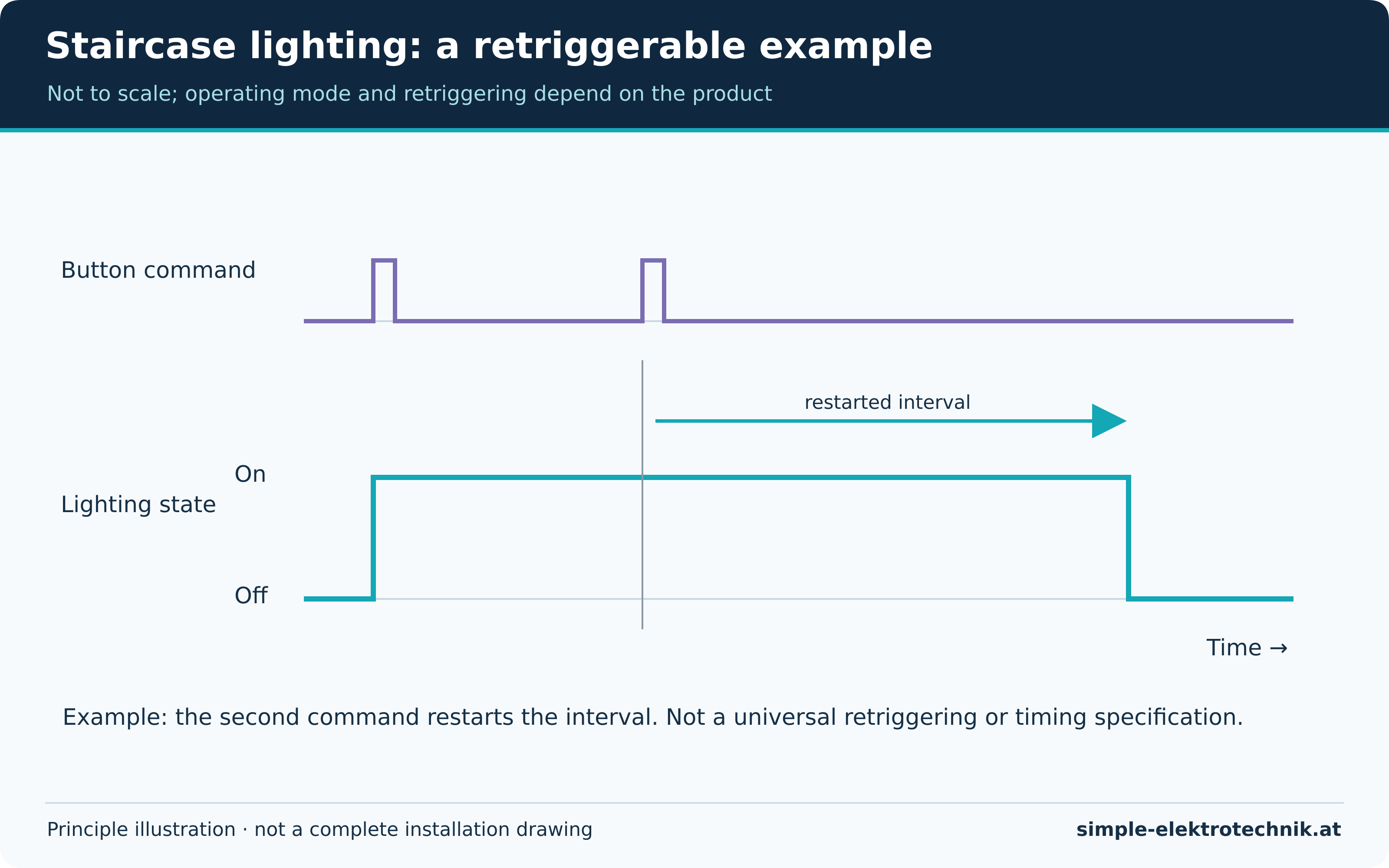

Retriggering is explicitly an example for a timer configured to restart its interval. A further valid pulse restarts or extends the intended on period in that example. Other products may impose an inhibit period or perform another action when operated again.
| Event | What to establish for the actual product |
|---|---|
| First brief command | Starting condition and output response |
| Another command during operation | Retriggering, inhibition or another mode |
| End of interval | Switch-off and any advance warning |
| Held button | Any intended long-press or permanent-on function |
| Supply interruption and return | Restart state and retained settings |
The time axis is not to scale and deliberately specifies no universal duration. Match the setting to the actual use. Advance warning is not a feature of every timer.
Circuit diagram and explanation
Connection principles and practical details
Wiring principle and product selection
Products differ in connection arrangement, input reference and output type. A single supposedly universal terminal drawing would therefore be misleading. This guide uses a functional overview and leaves actual terminal identification to the selected product's instructions.
Check:
- Supply and input type: a voltage signal or an appropriate contact input.
- Suitable push-buttons and the permitted loading of their indicator elements.
- Actual LED or luminaire load, including switching behaviour.
- Permitted wiring, circuit association and mounting environment.
- Selected operating mode, usability and power-return behaviour.
Three-wire and four-wire labels do not constitute a complete connection plan or a universal count that includes PE. An older arrangement shown in a product manual is not automatically acceptable for new installation in every country.
Work requires appropriate competence, authorisation and safety precautions. Do not combine unrelated neutrals or circuits as a shortcut to a control function. This English explanation preserves the original national context rather than asserting universal national installation rules.
Functional checks
Functional checks in the selected mode
Check the intended response from each push-button individually. Then observe the full cycle through to switch-off. Operate a button again during the on period and compare the response with the actual instructions and selected settings.
Check permanent-on or advance-warning features only if present and intended for the application. Another operating mode may behave very differently. Record the mode as well as the duration.
These checks complement required electrical verification rather than replacing it. Correct switching can coexist with a defective protective measure. Unexpected operation or heating needs appropriate assessment, not bypassing protective devices.
Advantages and limitations
Advantages and limitations
Advantages: Lighting can switch off after its intended use period. Multiple momentary controls are possible without requiring each button to retain a state. An appropriate timer may support useful additional functions.
Limitations: An unsuitable duration can leave users unexpectedly in darkness. The controller needs suitable input, load and installation conditions and can itself fail. Automatic switch-off does not guarantee a fixed energy saving.
An ordinary staircase timer does not replace separately required emergency or safety lighting. Those functions need an appropriate supply and protective design and their own applicable requirements.
Questions and related information
Common questions
Does every press extend the time?
No. Retriggering, inhibit periods and special modes depend on the product and settings. The timing drawing describes only its explicitly identified example.
Can a maintained switch replace the button?
Not universally. A continuous signal may behave differently from a brief command. Follow the intended input and operating function.
How is this different from a time switch?
The timer described here starts from an event and maintains an output for a duration. A scheduled time switch typically operates by clock time or a calendar programme. Multifunction products must be assessed in their actual configured mode.
