Staircase timers: functions and product selection
A staircase timer accepts an intended push-button command and operates a suitable output for a period. Automatic switch-off is its main task. Additional functions depend on the product and selected mode.
This guide explains the device and its selection. The full arrangement of buttons, timer and lighting belongs in the circuits category. An ordinary timer does not replace separately required emergency or safety lighting.
Construction and operation
Construction and operation
The basic functions are an input, timing evaluation and a load output. A valid event starts the intended cycle. Duration may be adjustable, fixed or determined by another supported mode.

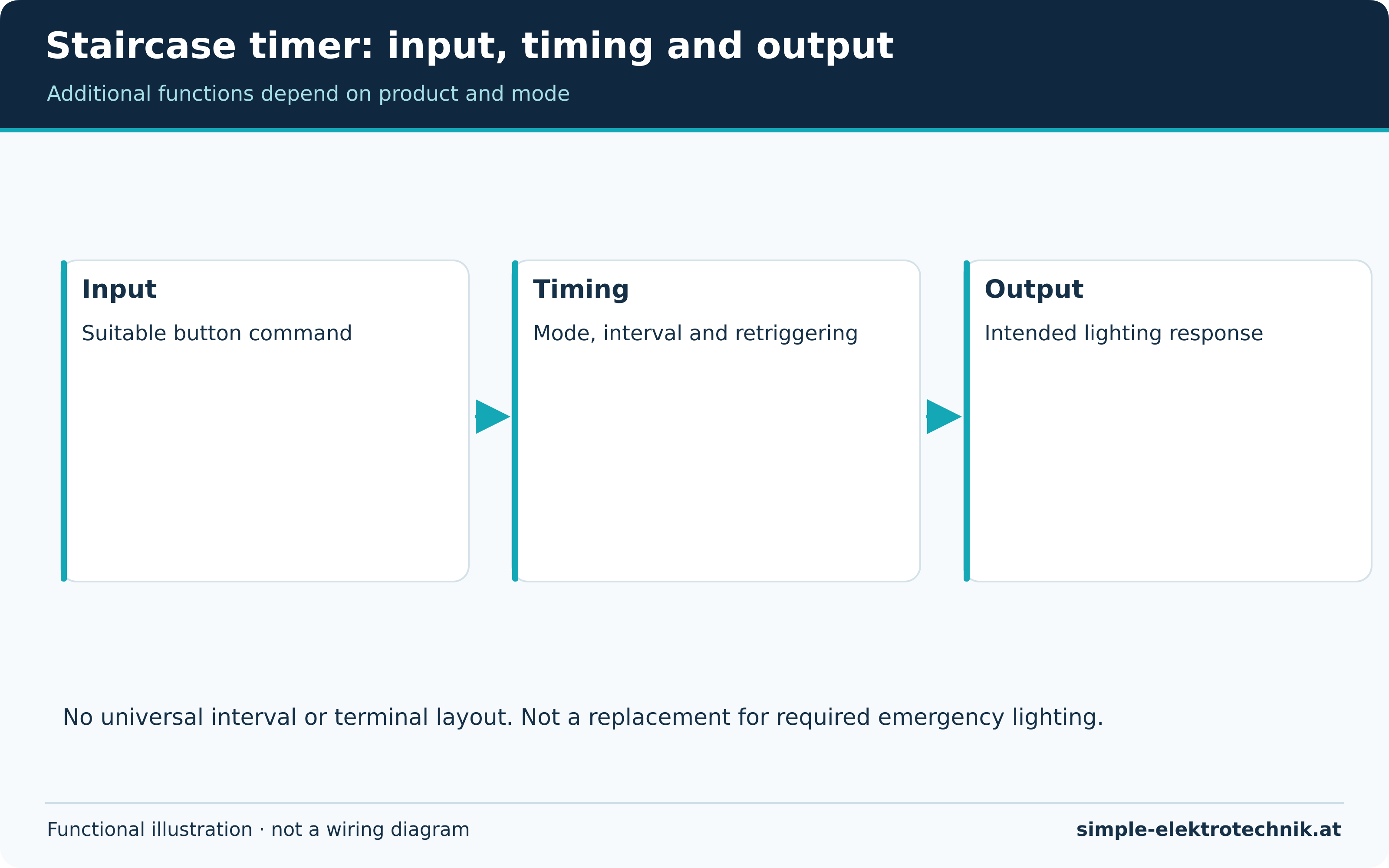

The illustration separates those functions. Starting, timing and switch-off describe the operating sequence; the illustration specifies neither a universal control voltage nor a terminal layout.
A basic impulse relay instead retains its new state until another suitable pulse. Multifunction products may offer both behaviours, so the actual selected mode is decisive.
Device illustrations and operating principle
Variants, connections and selection
Features and selection
| Feature | Establish before selecting |
|---|---|
| Retriggering | Whether another signal is accepted, when and with what result |
| Advance warning | Whether provided and appropriate for the use |
| Permanent-on mode | How it starts, is limited and ends |
| Long-press control | Which signal duration causes which response |
| Supply return | The resulting operating state |
Retriggerable does not necessarily mean that every press at any instant restarts the complete interval. Extra functions differ between products.
Choose the interval for the actual use. A short duration can leave users unexpectedly in darkness. Controls and any additional requirements for that area must be considered; there is no universal number of minutes.
Connections, load and mounting
Supply, input and output can have different functions and references. Three-wire or four-wire labels are not a complete connection plan or a universal conductor count including PE.
Illuminated buttons may add input loading. Use the permitted combined indicator current; the number or appearance of buttons alone is insufficient.
Assess the actual lighting against relevant product data. LED inrush and permitted combinations may differ from a general resistive-load rating. Consider heat, wiring space, mounting and circuit identification.
An older connection option in a manual does not establish permission to use it in every new installation. Preserve the applicable national context for Austria, Germany or Switzerland.
Functional checks
Functional checks
In the intended mode, check every button and the complete cycle through to switch-off. Compare another press during operation with the stated retriggering behaviour.
Test warning and permanent-on modes only if present and intended. Record settings and mode. Do not leave manual override selected unintentionally.
Continuous lighting may indicate a fault, an active command or permanent-on mode. Early switch-off may reflect settings or a different input function. The visible lamp alone does not establish a diagnosis.
Advantages and limitations
Advantages and limitations
A suitable timer can limit lighting duration and support several momentary controls without a separate smart-home controller.
Duration, load suitability, inputs and device availability impose limits. Automatic switch-off does not establish fixed savings. Functional checks do not replace required electrical verification.
Questions and related information
Common questions
Is it a scheduled time switch?
No. This timer works from an event and a duration. A time switch typically compares clock time with a programme.
Can a maintained switch replace a button?
Not universally. A continuous signal may produce a different response. Follow the actual input and operating function.
