Reading lighting circuit diagrams
A circuit diagram shows electrical connections and how components work together. It does not automatically show cable routes through a room or the physical position of a product's terminals. Keeping those tasks separate makes a complicated drawing much easier to follow.
Start with a simple lighting circuit. Identify the supply, contacts, lamp and return path before looking at more elaborate arrangements. The additional illustrations explain contact functions and distinguish a junction from a crossing.
Circuit diagram, connection diagram and installation layout
A functional circuit diagram arranges components to explain their electrical relationships. Readability matters more than their physical position. A connection diagram identifies the connections of a particular product or a clearly defined example. An installation layout may instead locate switches, luminaires and other equipment within a building.
These drawings complement one another. A functional diagram cannot replace the instructions for the selected product. Equally, a small terminal drawing on a switch does not necessarily explain the behaviour of a complete lighting circuit.
Our illustrations are identified as principle or functional drawings. Terminal positions, component references and highlighted colours must not be transferred indiscriminately to an existing installation.
Find the supply and the load
Begin at the supply and identify the load. In the single-phase examples in this category, L denotes the line conductor, N the neutral conductor and PE the protective conductor. Some diagrams use L′ for the switched line conductor. It describes a function, not an additional supply phase.
Normal load current follows its intended outgoing and return paths. PE is not an operational return conductor. Whether a luminaire requires a protective-conductor connection depends on its construction and the applicable protective arrangement; the lamp symbol alone does not establish its equipment class.
A conductor can turn several corners on the page while remaining part of the same electrical node. Follow labels and connections rather than assuming every diagram must be read from left to right.

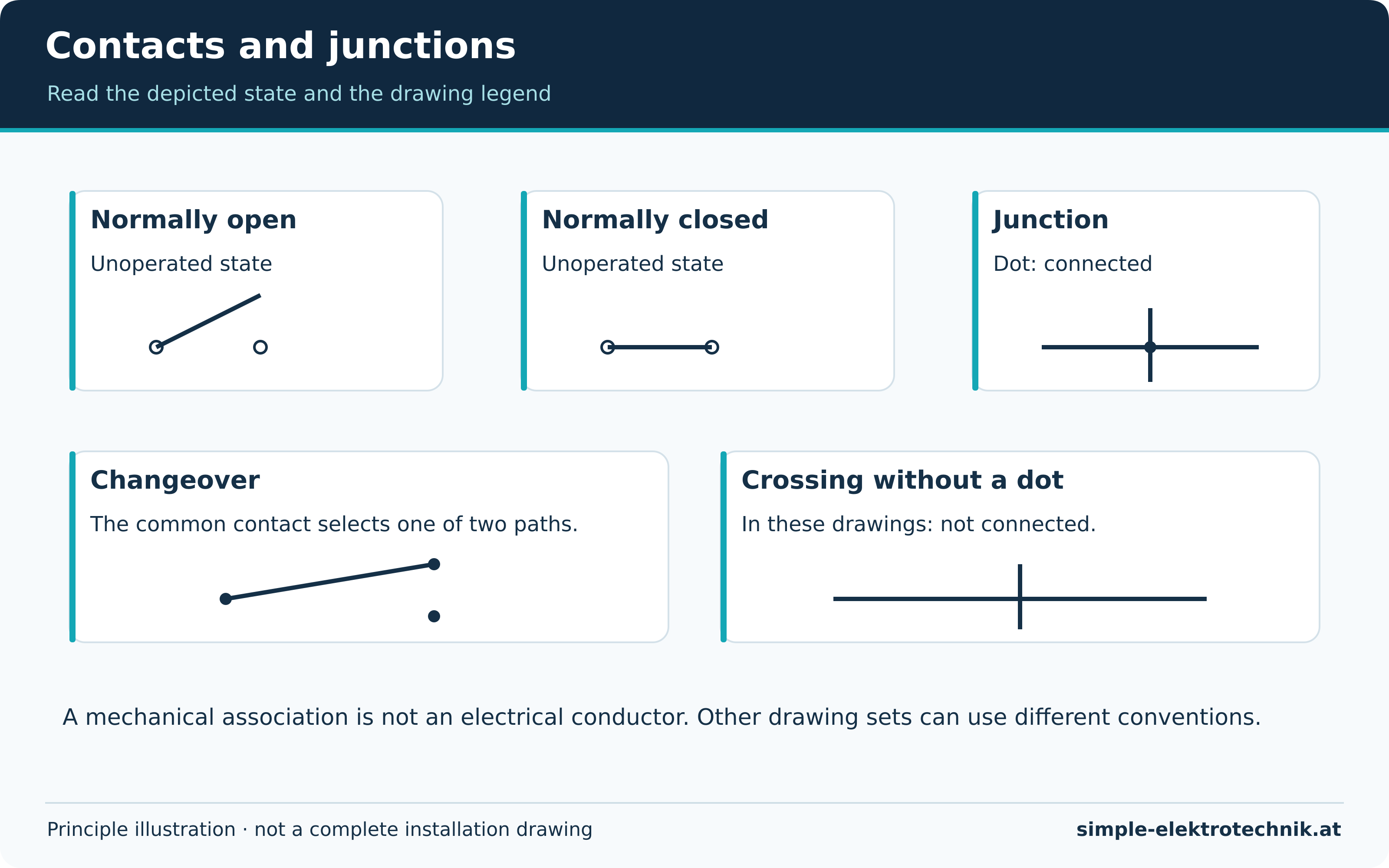

Understand contacts and the depicted state
A normally open contact is open in its defined unoperated state and closes when operated. A normally closed contact does the opposite. A changeover contact connects a common terminal to either of two alternatives. A momentary push-button returns when released; a maintained switch retains its position.
| Depiction | Meaning |
|---|---|
| Open contact | No conductive connection at that contact in the depicted state |
| Closed contact | The contact joins the illustrated connections |
| Changeover contact | One common contact and two alternative paths |
| Mechanical association | Contacts share an operation; the association is not an electrical conductor |
Maintained lighting switches do not have a universal “up means on” position. First interpret the state actually drawn. L or COM may identify a common terminal on a product, but the real marking and location must be checked against that product's documentation.
Crossing or junction?
A junction dot in our illustrations identifies an intended electrical connection. A crossing without a dot is not connected in these drawings. Other drawing sets may use bridge symbols or their own conventions, so read the legend before applying that rule elsewhere.
Conductors entering the same enclosure are not necessarily connected. A dashed boundary can represent the extent of a device rather than a protective conductor, screen or cable.
Colour helps readers distinguish paths. It does not prove the function of an existing core. Identification and actual connection must be established appropriately, especially in older installations.

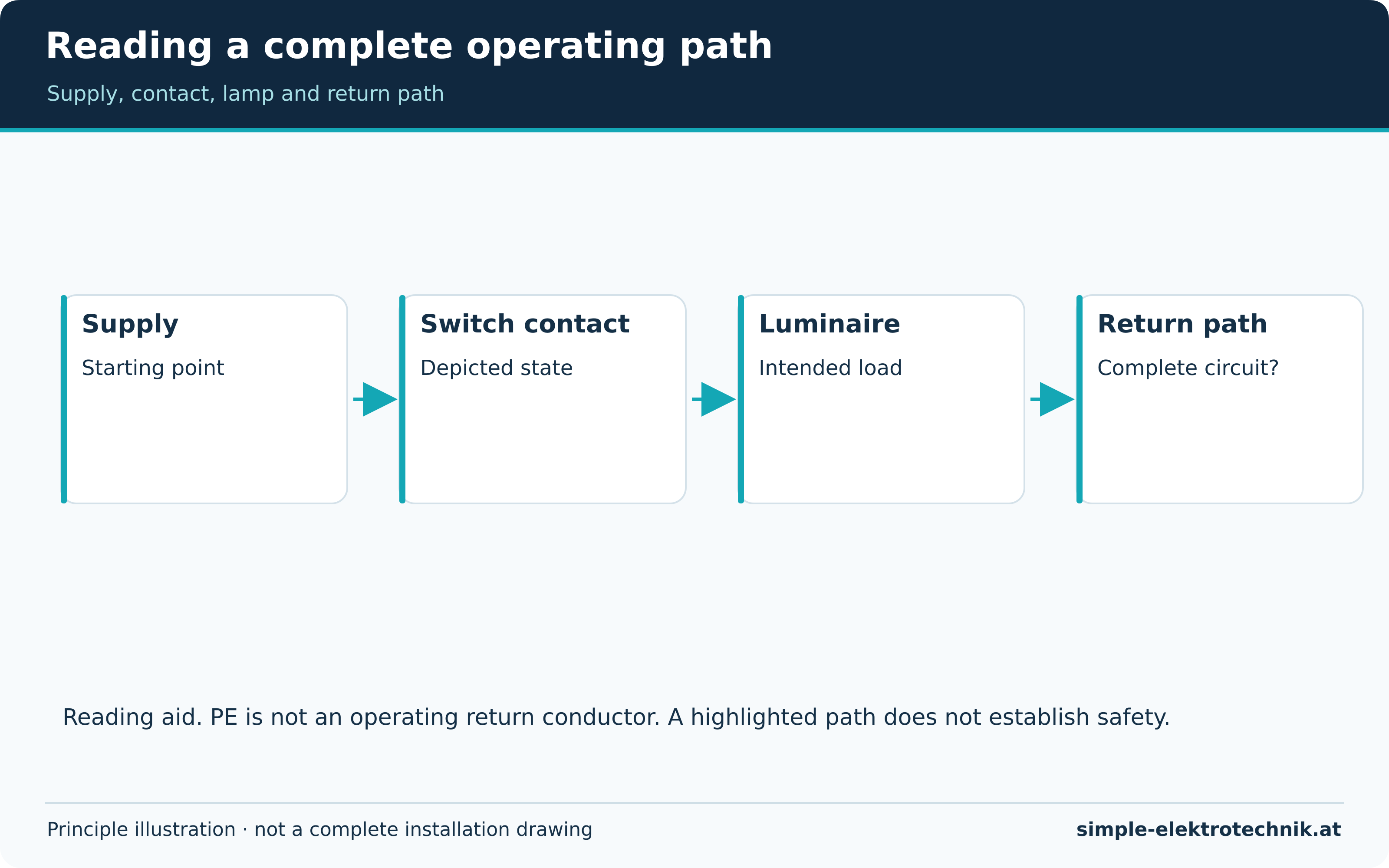

Trace a complete current path
Use the one-way circuit as the first example. Closing its switch completes the intended operating path through the lamp and back to the supply. Opening it interrupts that path. Other parts of the installation may still be live even though the lamp is dark.
The two-way circuit adds two alternative paths. Write down which contact each switch connects before tracing the complete route. Neither switch has a fixed position that always means on or always means off.
Highlighted paths in educational diagrams explain a selected operating state. They do not prove isolation or the safety of an actual circuit.
From understanding to appropriate verification
A useful learning exercise is to predict the result before operating a depicted switch, then compare it with the state table. This can be done on paper or in a suitable educational simulation without constructing a mains installation.
Installation work and electrical testing require the necessary competence, authorisation and precautions. Successful switching is not a substitute for verification of protective measures. The five safety rules explain the associated safety framework; the applicable precautions remain those of the actual installation.
Common questions
Does a dark lamp prove the circuit is dead?
No. A failed lamp, interrupted connection or open switch can also leave it dark. A visible operating state is not evidence of absence of voltage.
Does the symbol show the terminal arrangement?
No. A symbol describes contact function. Obtain physical terminal identification from the actual manufacturer's documentation.
What should I read next?
The lighting circuit comparison helps you choose a topic. Individual guides then explain the functional drawing, wiring principle and appropriate operational checks in a consistent order.
Sources and further documentation
Electrical safety: scope, competence and precautions
Put electrical safety first.
- These explanations and simplified diagrams support learning. They are not complete installation designs, site-specific risk assessments or a substitute for competent professional assessment.
- Electrical work can be life-threatening. It requires the competence and authorisation appropriate to the actual task, installation and jurisdiction.
- Errors and omissions can occur. Check the actual equipment documentation, applicable requirements and the complete installation before relying on an example; a working device is not proof of electrical safety.
- Personal protective equipment must suit the assessed hazards and task. It does not replace isolation, appropriate tools, competence or a safe system of work.
- Do not work on exposed live parts on the basis of these guides. Identify every relevant source, isolate it, secure against reconnection and prove dead using suitable equipment and procedures before access.
- Responsibilities for design, installation and verification must be established for the actual work. A website statement does not determine liability or remove duties under applicable law.
- This summary is not exhaustive. Where the circuit, condition or protective arrangement is uncertain, obtain suitable professional assistance before work proceeds.
- Complete the required inspection, testing and documentation before use, and maintain the installation and equipment appropriately.
