Installation relays and contactors: function and selection
Installation relays and contactors switch suitable loads in response to a control input. This separates the command from the load function. A small command does not mean every associated terminal is safe to touch.
This guide explains devices and selection. Self-holding, reversing and star–delta operation are complete circuit functions described in the contactor-circuit category, not inherent features of every contactor.
Construction and operation
Construction and operation
A conventional electromagnetic device contains a coil, a moving magnetic mechanism and associated contacts. Suitable control operates them. A typical monostable device returns to its defined rest state when control is removed.
Normally open, normally closed and auxiliary contacts have different roles. An auxiliary feedback contact is not automatically suitable for the same load as a main contact.

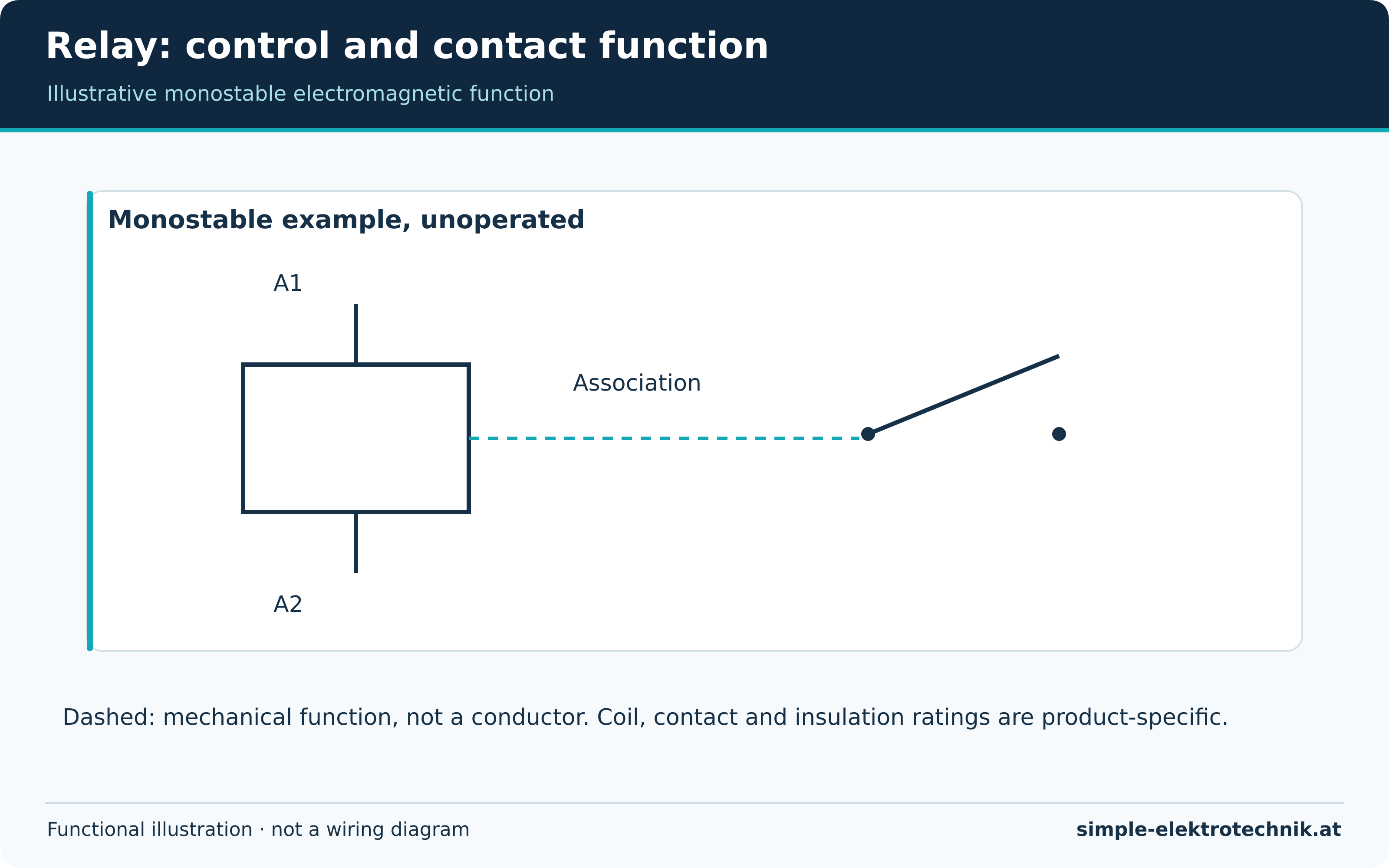

The diagram separates control and contact paths. A mechanical association identifies contacts operated together; it is not a conductive link between coil and load. Product data must establish any required safe separation between voltage systems.
Relay or contactor?
There is no reliable universal rule that a device becomes a contactor above one particular current. Construction, intended use and specified switching conditions determine suitability.
| Selection point | Meaning |
|---|---|
| Control | Suitable AC/DC voltage, frequency and operating conditions |
| Contacts | Number, function, loading and required separation |
| Load | Assess resistive, inductive, motor and electronic loads separately |
| Utilisation category | The manufacturer's rating for that switching task |
| Installation | Space, heat, environment, noise and permitted mounting |
Continuous-current capability is not unlimited making and breaking capability. A heater rating cannot simply become the same motor or LED rating. Use the relevant table for the actual product and conditions.
Device illustrations and operating principle
Variants, connections and selection
Connections and protection
A1 and A2 may identify coil connections. Those labels do not establish voltage or universal polarity independence. Electronic control or suppression components can add requirements.
Identify main and auxiliary contacts from the real product diagram, not the apparent position in a front photograph. Similar-looking devices can have different contact combinations and supplies.
A contactor does not automatically replace a fuse, overload protection, motor protection or a suitable isolating device. It is part of the design. Conductors, protective devices and any necessary interlocking must suit that design. PE is not an ordinary switched pole.
Functional checks
Functional checks
Predict which contacts should open or close from the diagram, then assess the real response under suitable conditions. Coil sound alone does not prove every load contact has operated.
For a monostable version, check its intended return when control is removed. Mechanically latched or electronically maintained versions require their own interpretation. Any manual override must be understood and left in the intended position.
Unexpected humming, repeated operation, excessive heating or sticking contacts need competent investigation. Supply, command, load and mounting may be involved. Do not bypass protection to make a test work.
Advantages and limitations
Advantages and limitations
Suitable products separate control tasks from load switching and may operate several contacts together. Integration into a larger control system depends on their actual specifications.
Contact wear, switching duty, coil or electronic losses and the environment impose limits. A larger current marking does not correct a mismatched application.
Questions and related information
Common questions
Is a volt-free contact dead?
Not when connected to an energised external circuit. The term describes its internal supply reference, not the state of the installation.
Is it an impulse relay?
Not necessarily. The basic impulse relay retains a new state after a brief command. An ordinary monostable relay follows its control signal.
