Two-gang lighting circuit: two independent groups
A two-gang lighting circuit operates two lighting groups independently from one position. One rocker controls the first group and the other controls the second. This can separate two parts of a room's lighting.
The German installation term Serienschaltung does not mean that the lamps are electrically connected in series. It describes two switching functions at one device. Our diagrams therefore show independent load branches across the supply.
Construction and operation
Construction and operation
The example has two independently operated contacts and lighting groups E1 and E2. Each contact switches its group's intended line-conductor path. Neutral and protective-conductor arrangements must suit the installation and equipment.
A typical series-switch insert has a shared supply connection and two switched outputs. Check the actual internal arrangement and markings rather than assuming every double rocker is equivalent. Similar controls can contain momentary contacts, two changeover functions or electronics.
Either group can be on while the other remains off. Both may also be on or off together, provided the installation and equipment are properly rated for those operating conditions.
Circuit diagram and explanation
Circuit diagram and four states

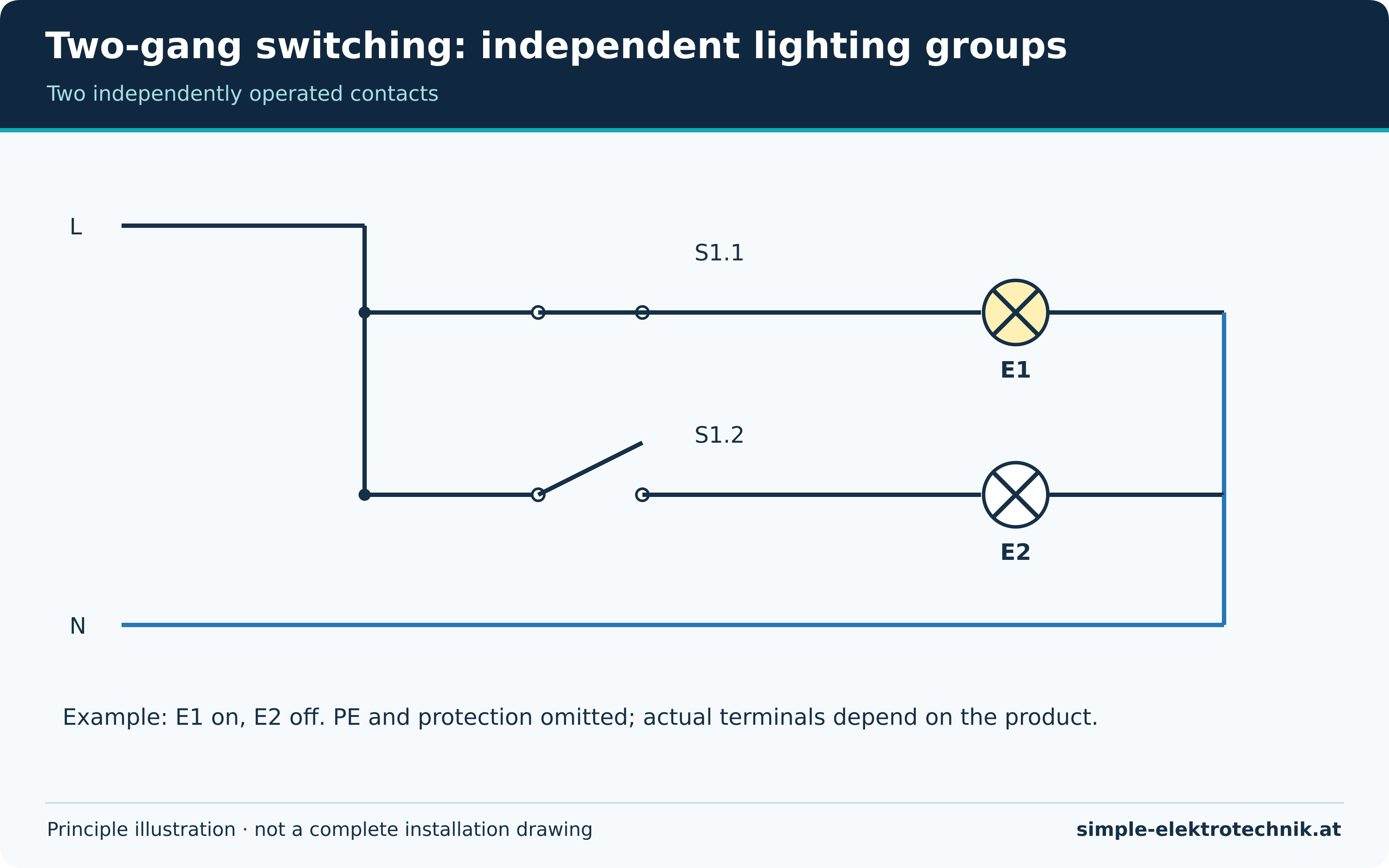

The new drawing identifies both branches and is complemented by a state table. Terminal labels are functional, not a promise about the position of connections on a particular product.
| E1 contact | E2 contact | Expected result |
|---|---|---|
| Open | Open | Both groups off |
| Closed | Open | E1 only on |
| Open | Closed | E2 only on |
| Closed | Closed | Both groups on |
The table assumes serviceable branches. A failed lamp or interrupted supply can alter the visible result without changing a contact position. A dark lamp still does not prove absence of voltage.

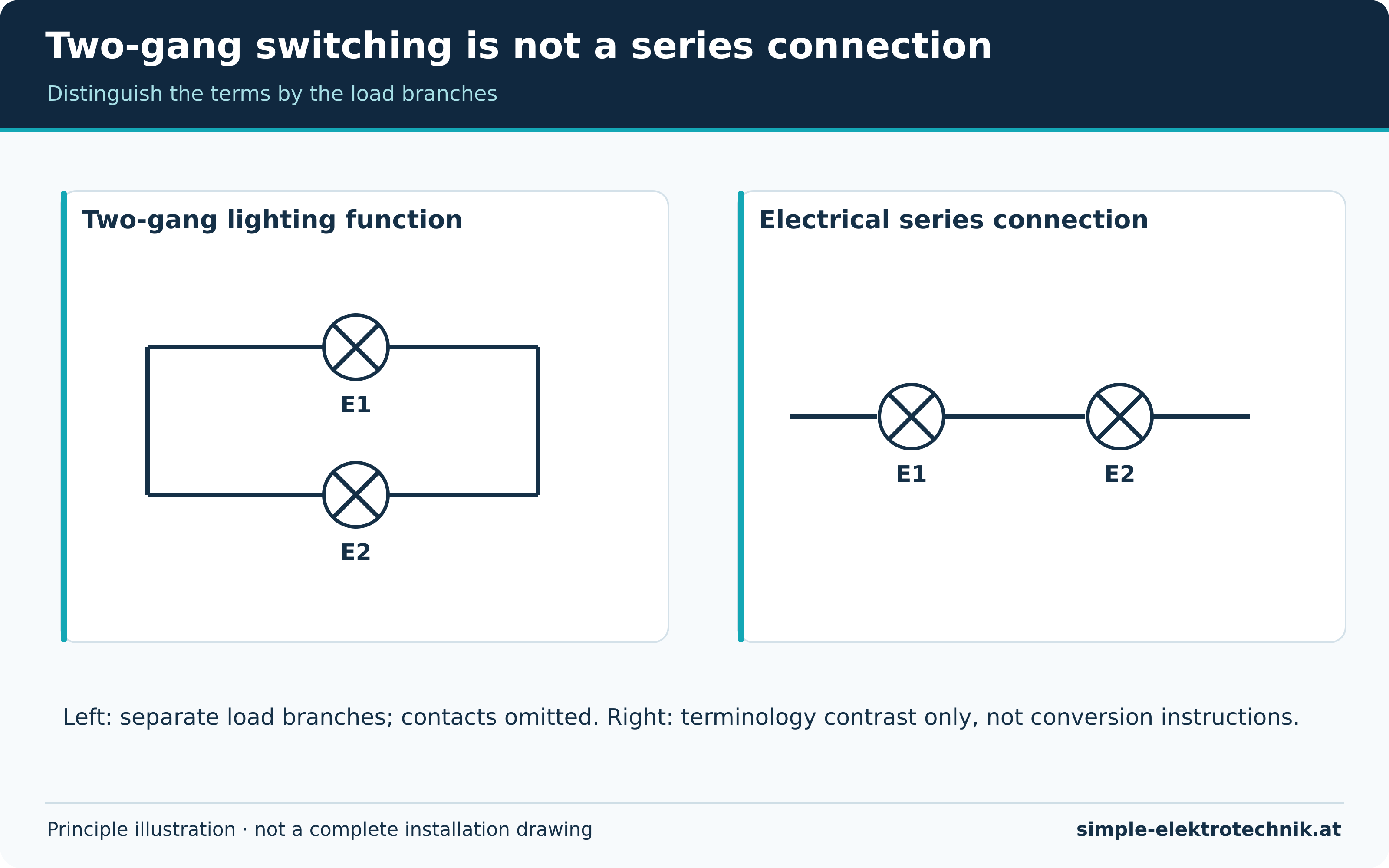

A separate terminology illustration contrasts independent switched branches with a genuine electrical series connection. It explains the naming issue; the series example is not an alternative wiring instruction for these luminaires.
Connection principles and practical details
Wiring principle and planning
Independent operation requires the appropriate connections between the switch and each group. A universal conductor count would ignore cable routing and installation design. PE retains its protective role and must not become another switched conductor.
For an insert with a shared input, both contacts belong to the relevant supply arrangement. Do not distribute unrelated circuits across rockers assumed to be independent. Separate supplies require equipment specifically suitable for that purpose and an appropriate design.
Establish:
- The actual contact function and any internal common connections.
- Permissible loading of each output and of the complete device.
- Suitability for the selected lighting and its switching behaviour.
- Conductor identification and required protective measures.
- A clear relationship between rockers and lighting groups.
The switching-device category explains the component itself. This guide explains the complete branch function. Mains installation requires the appropriate competence and safety precautions for the actual task.
Functional checks
Functional checks
An orderly operational check covers all four states, not merely both lights on together. Each group should respond independently to its assigned rocker. That helps reveal unintended coupling between outputs.
First predict the states from the diagram. Appropriate electrical verification is then required following installation. Successful switching alone establishes neither protective-conductor continuity, insulation condition nor effective fault disconnection.
Unexpected interaction between groups needs investigation. Unequal brightness or residual glow does not by itself prove a particular wiring fault; lamp electronics may also influence the observation.
Advantages and limitations
Advantages and limitations
Advantages: Two groups can be controlled independently from a compact position. Users can select the required lighting without an additional timer or state-holding control device.
Limitations: One two-gang switch alone does not provide extra control positions, and it is not a dimmer. Multiple positions or variable brightness need another or extended arrangement. Having two groups does not guarantee energy savings; actual use and lighting equipment matter.
Questions and related information
Common questions
Can two existing lamps become independently controlled?
Only if the required separate connections and suitable equipment exist or are appropriately provided. A new double rocker alone cannot separate lamps that share the same switched connection.
Is a two-gang push-button equivalent?
No. It produces momentary commands and needs an appropriate controller. The maintained switch described here holds its two contact positions.
What about additional control positions?
The comparison guide explains the options. For two groups, multi-position operation must be considered for each group; simple two-gang switching does not provide it automatically.
