Twilight switches: daylight sensing and control
A twilight switch evaluates brightness at a suitable sensor and operates its output according to the intended function. It may enable lighting in darkness, but does not automatically detect motion or occupancy.
Actual measured light distinguishes it from an astronomical time switch, which calculates solar times. Sensor position, shade and other light sources affect the result, so select and configure the device for the task.
Construction and operation
Construction and operation

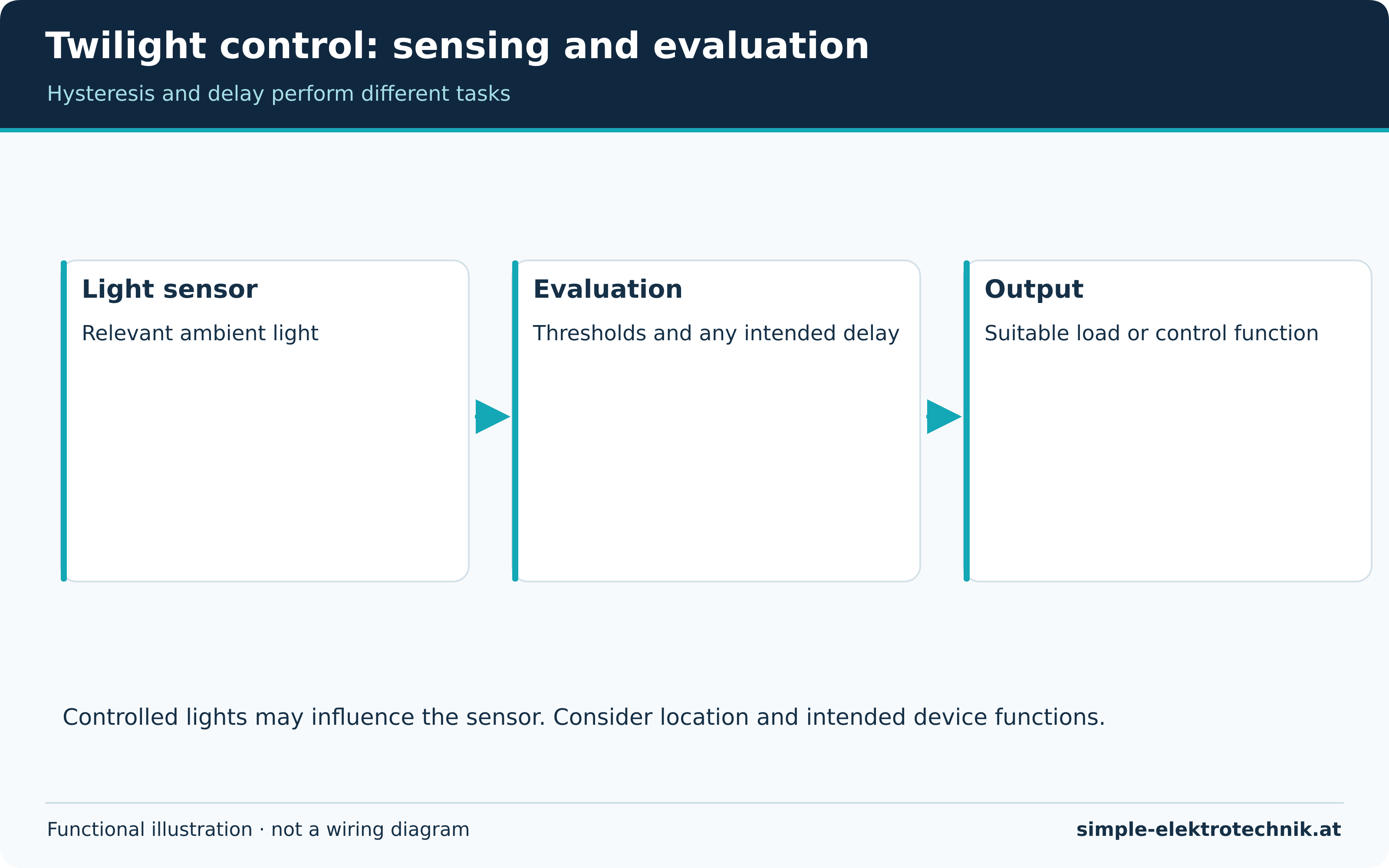

The basic functions are sensing, evaluation and a suitable output. The sensor may be integrated or remote. Arrows in the new illustration describe those functions rather than conductors.
A brightness setting defines a switching condition. Some products use separate thresholds or hysteresis; time delays can also limit unwanted responses to brief changes. Actual behaviour is product-specific.
Hysteresis and delay are different. Hysteresis distinguishes thresholds or state-dependent switching conditions, while a delay considers how long a condition persists. A product may use both; a visible adjustment knob alone does not establish either.
Device illustrations and operating principle
Variants, connections and selection
Variants and selection
| Question | Why it matters |
|---|---|
| Integrated or remote sensor? | Device location and sensing location may differ |
| Required response? | Distinguish dark-on, bright-on and other functions |
| Output and load? | Volt-free contacts differ from internally supplied outputs |
| Time programme? | A night interruption needs an appropriate extra function |
| Environment? | Consider ingress protection, temperature, light access and mounting |
An adjustable range does not recommend one universal lux setting. Suitable operation depends on use and sensing position. Work or traffic lighting may require a separate professional design.
Sensor placement and connections
The sensor should represent the relevant ambient light. Its own controlled lamp can create feedback: switching on makes the sensor bright, switching off makes it dark. Headlights, facade lighting and heavy shade may also distort the assessment.
Appropriate placement and the intended device functions work together. Arbitrarily covering the sensor may stop it representing the environment. Follow orientation, mounting and sensor-cable instructions.
Identify supply, sensing and load connections from the actual diagram. Do not assume a sensor cable operates at mains voltage. Observe separation requirements between voltage systems; PE retains its protective role.
Functional checks
Functional checks
Allow for the relevant brightness condition and any delays. Briefly shading a sensor need not produce immediate switching. If a test mode exists, use it as instructed and restore normal operation afterwards.
Check the intended dark and bright responses and assess interference from the controlled lamp. Record the position and settings. These observations do not replace electrical verification.
Repeated switching can result from placement, other light, settings or faults. A symptom alone does not establish its cause.
Advantages and limitations
Advantages and limitations
Local sensing can respond to seasonal daylight changes and actual cloud cover. It needs an appropriate location and compatible output/load arrangement.
Without extra functions it knows neither occupancy nor the intended night-time schedule. Time and light conditions may complement one another but require a coherent design. No fixed energy saving is guaranteed.
Questions and related information
Common questions
Is this a motion detector?
No. Motion and presence detectors evaluate different inputs, although they may also assess brightness.
Why does a shading test not switch immediately?
An intended delay may be operating. Check the instructions, selected mode and actual sensing condition before assuming a fault.
