Interlocking and motor protection
Interlocking, overload protection and short-circuit protection perform different jobs. An interlock prevents specified combinations. An overload device responds to excessive thermal duty according to its design. Short-circuit protection must handle the associated fault conditions.
Successful interlocking therefore does not prove complete motor protection. An overload relay also does not prevent every forbidden contactor combination.
Construction and operation
Electrical interlocking
In simple mutual interlocking, a suitable K2 NC auxiliary is in the K1 coil path and a K1 NC contact is in the K2 path. Operating K1 opens its auxiliary in the opposite path.
Allocation matters. An NC contact of the same contactor has a different effect from the opposing contactor's contact. Holding branches must not bypass the interlock. The new diagram shows its shared position.
Button interlocking using associated NO and NC button contacts is a different function. It can create a different command sequence but does not generally replace mutual contactor interlocking.
Mechanical interlocking
A suitable mechanical interlock acts between the contactors to prevent simultaneous closing within its designed function. It does not replace correct electrical commands or assessment of every other failure.
Follow the actual starter manufacturer's interlocking requirements. Adjacent contactors do not automatically have an effective mechanical interlock fitted.
Welded main contacts and auxiliary-contact behaviour need separate consideration. Ordinary auxiliary indication is not automatically safety-related position monitoring. Required safety functions need suitable devices, architecture and validation.
Overload and short circuit
| Task | Example | Limitation |
|---|---|---|
| Detect motor overload | Suitable thermal or electronic overload device. | Not automatically complete short-circuit protection. |
| Handle short circuit | Suitable fuse or designated protective device. | Coordinate with the installation and starter. |
| Switch the motor | Appropriately rated contactor. | Switching does not itself provide protection. |
| Prevent forbidden combinations | Electrical and, where required, mechanical interlocks. | Not a complete machine safety assessment. |
A manual motor starter may combine functions. It and a separate overload relay are not always both required regardless of design. Use the documented combination.
For star-delta starters, overload settings also depend on position. A device in the line path measures different currents from one in a winding branch. Do not apply a commonly quoted multiplier without establishing the arrangement.
Resetting and restarting
Protective equipment may reset manually or automatically under defined conditions. Resetting does not necessarily remove the cause. Control-circuit restart behaviour is another question.
Ordinary seal-in drops out after sufficient supply interruption when Start is released. A maintained command or other automatic path can change this. The name seal-in does not establish a required safety-related restart inhibit.
Stop is not automatically emergency stop. Required emergency-stop operation, reset and subsequent starting need a defined machine design. This guide does not provide a universal single-channel safety circuit.
Circuit diagrams and explanations

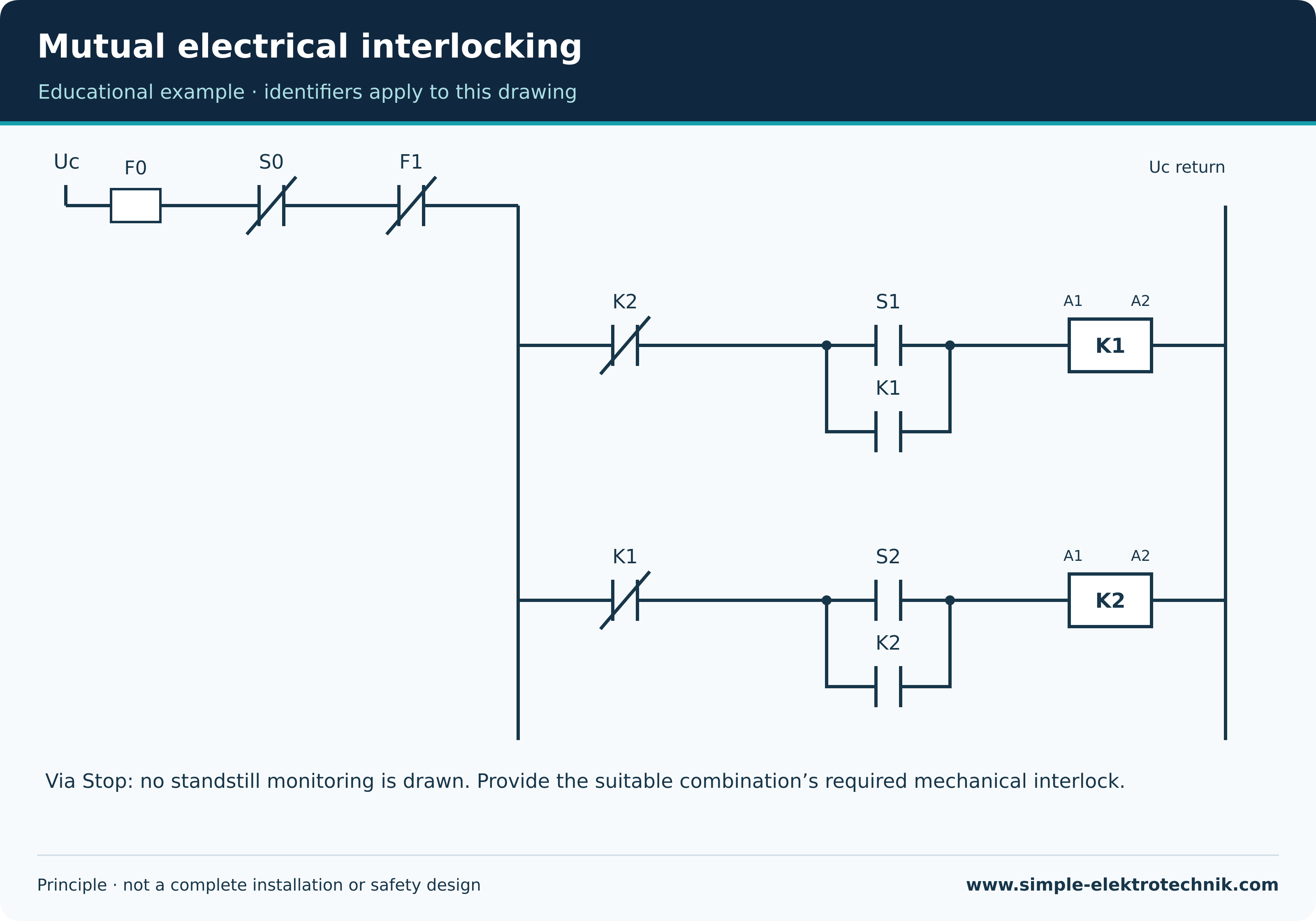

Mutual electrical interlocking

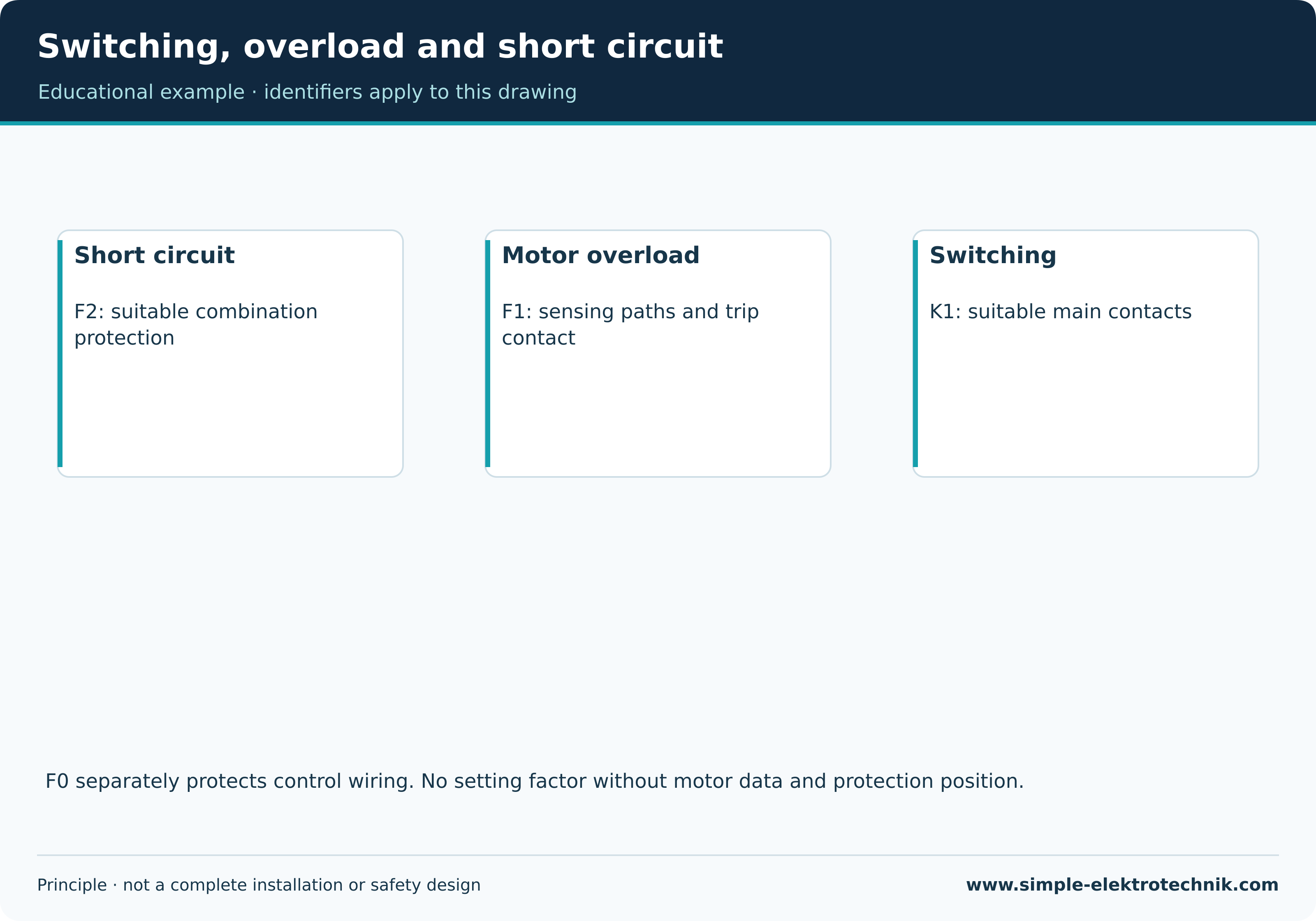

Switching, overload and short circuit
Wiring principles and selection
Wiring and checks
Define permitted states and transitions first. Assess every holding, start and remote path against common stop and interlocking conditions. An added parallel contact can change the protective logic.
Use appropriate test methods with the hazard area secured. Do not try forbidden states by shorting circuits or bypassing real protective functions. Follow intended product testing procedures.
Document results. A blocked opposing command proves the tested relationship, not every safety property. Electrical verification and required machine-safety validation remain separate.
Advantages and limitations
Benefits depend on suitable design. Contact duty, protection and behaviour after interruption must match the application.
Advantages and limits
Separating tasks improves selection, investigation and later alteration. It allows coordinated design instead of adding plausible-looking symbols.
Unknown motor data, equipment combinations or safety requirements remain genuine gaps. Do not fill them with guessed settings.
Questions and related guides
Common questions
Can overload settings be raised to avoid trips?
Not without investigating the cause and reassessing the design. Tripping may indicate unacceptable duty or a fault.
Is one NC auxiliary always enough?
That depends on the combination and application. Product instructions and the protective design may require more.
Why might protection fail to stop a contactor?
Possible causes include a disconnected trip contact, a bypass path or equipment failure. Check the actual circuit and function.
