Reading contactor circuit diagrams
A circuit diagram describes electrical relationships rather than physical mounting positions. It shows which contacts are in series, which create an alternative path and which coil is supplied.
For contactor circuits, start with the control circuit and then identify the associated power contacts. The drawing still needs comparison with the actual machine.
Construction and operation
Symbols and identification
Equipment identifiers associate components. In this category K1 identifies a contactor and M1 a motor. Other diagrams may use another system; consistency within the actual drawing matters.
A1/A2 commonly identify coil terminals, 13–14 an auxiliary NO contact and 21–22 an auxiliary NC contact. Power contacts and overload devices have other markings. Check the product rather than transferring example numbers blindly.
The symbol overview shows normal states. Timed contacts additionally require a defined timing function. An ordinary NC symbol with a time written nearby does not fully specify a star-delta transfer function.
Series, parallel and crossings
Series contacts must all be closed for that path to conduct. A parallel branch provides an alternative route. In simple seal-in control, Start and the holding contact are parallel, while Stop must interrupt both paths.
A crossing without a junction is not a connection. Unclear dots in poor drawings are therefore a real review issue. Do not guess connections from an illegible diagram.
A coil and its contacts are associated functionally, not by an imagined electrical wire between their symbols. Cross-references locate associated contacts on other paths or sheets.
Relating power and control
If the control circuit supplies K1, the associated main contacts operate according to the device function. The motor still needs a suitable power supply, protection and load connections.
A supplied coil does not prove every main pole is working. Wear, welding, a missing phase or a wiring fault can produce a different actual condition. Keep intended diagram state separate from measured or observed state.
For several contactors, list permitted combinations. Star-delta and reversing arrangements allow different combinations. Similar visual placement does not make their logic interchangeable.
Circuit diagrams and explanations
Following a path
1. Identify the intended control supply and its return or reference. 2. Trace common stop and protective conditions. 3. Distinguish start, holding and permissive branches. 4. Find the coil and trace its return. 5. Reconsider the contacts belonging to the device after its state changes.
For seal-in operation, closing the start button is only the beginning. When K1 operates, its auxiliary contact changes too. That creates the path remaining after Start is released.
The coloured example highlights an operating current path. Colour here identifies a state, not a required conductor colour. An unhighlighted branch is not proven safely dead in a real installation.

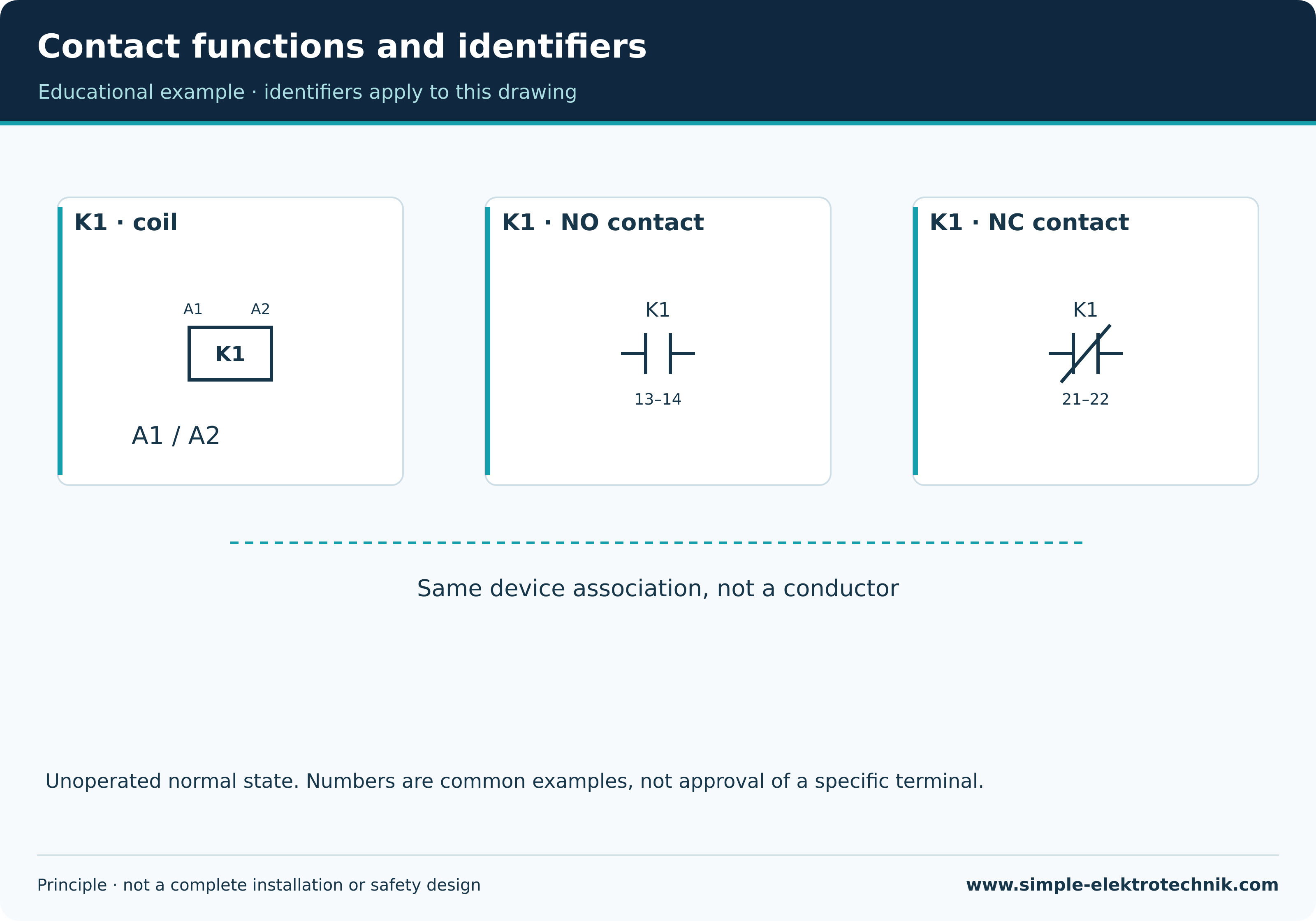

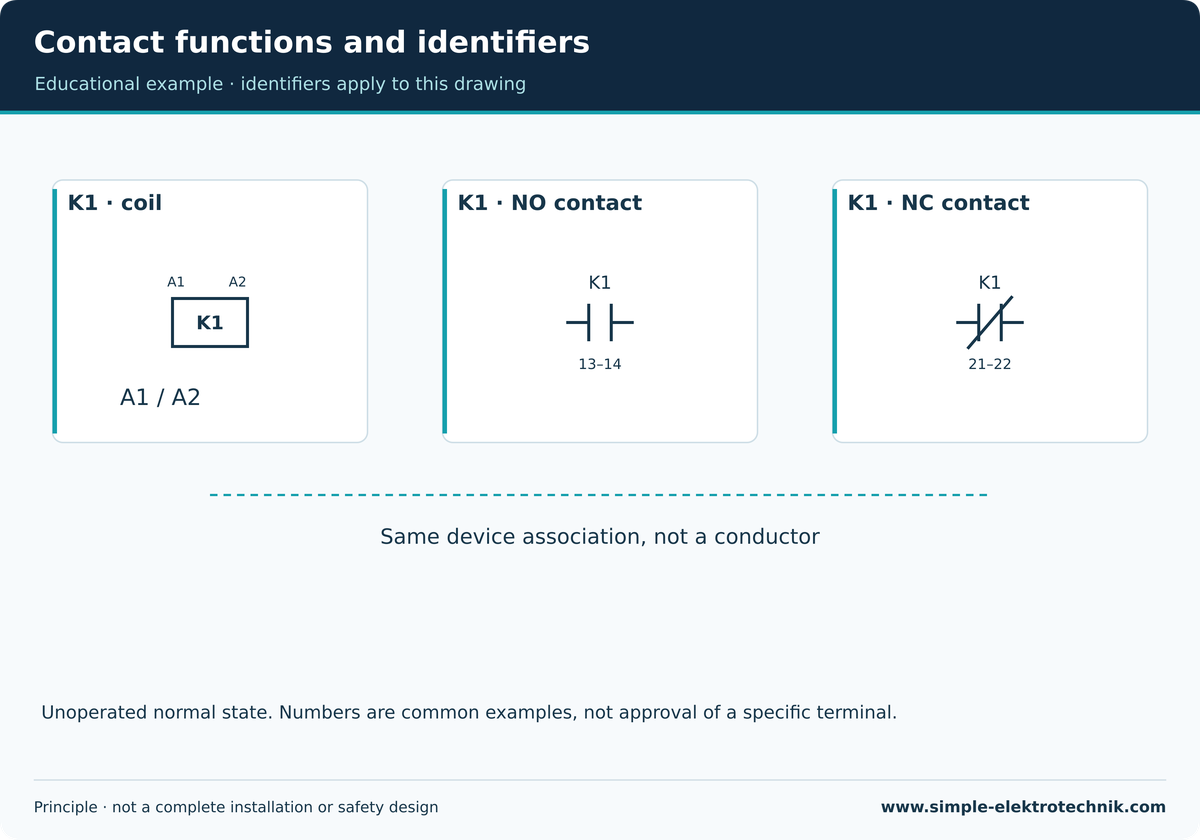

Contact functions and identifiers

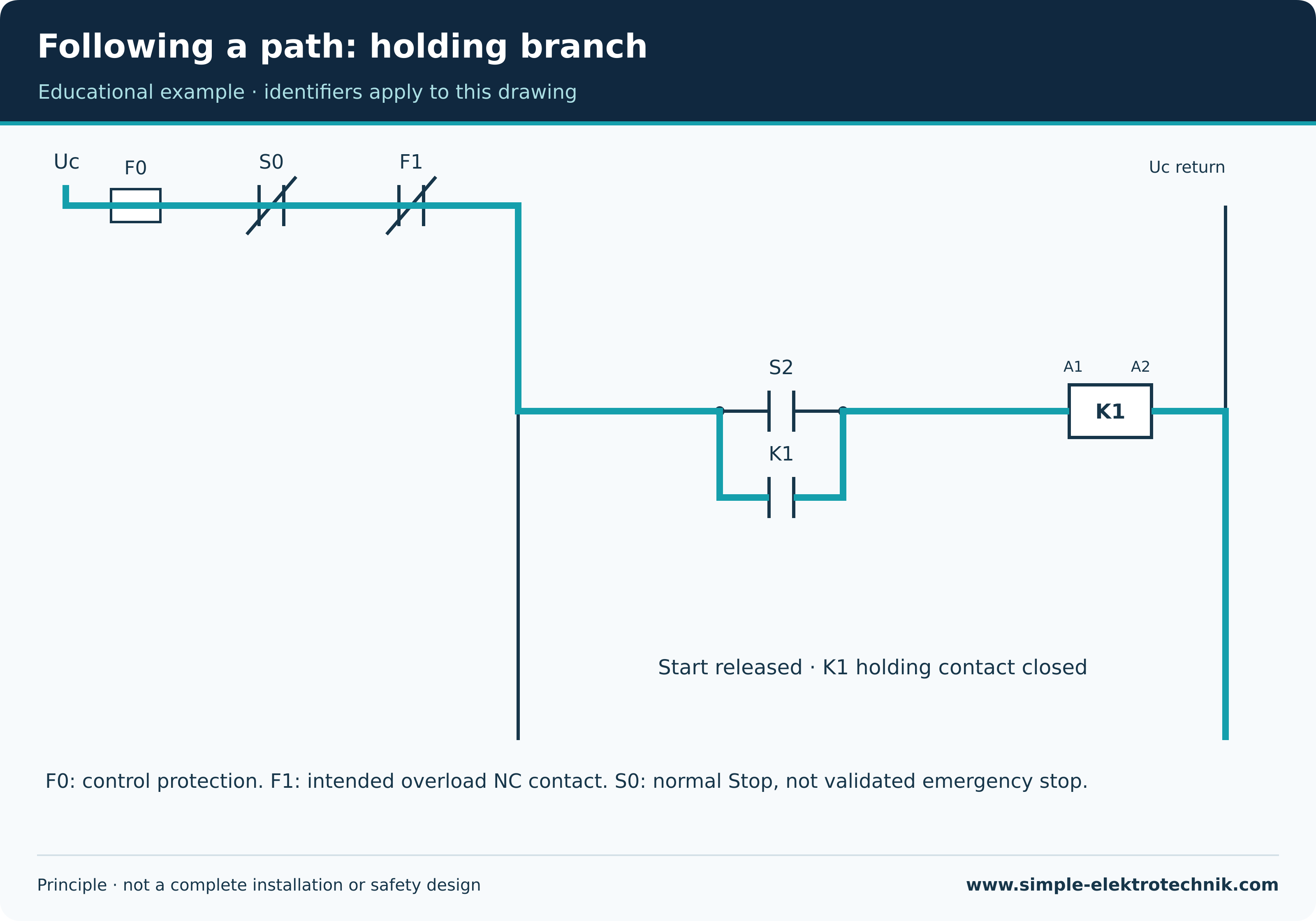

Following a path: holding branch
Wiring principles and selection
Wiring, verification and limits
A circuit diagram is not necessarily a complete assembly drawing. Terminal schedules, layout, wire identification and product instructions supplement it. Conductor colour does not replace this documentation.
Compare the build with the plan before operation. Electrical protection verification and functional checking are separate tasks. A plausible control path alone does not validate a machine safety function.
Questions and related guides
Common questions
Are all contacts shown in their operating state?
They are shown in the defined normal state. Analyse each operating state by changing the associated contacts. Timed functions also require their defined sequence.
Do identical numbers mean the same device?
Not alone. Read the terminal number with the equipment identifier. K1:13 and K2:13 are not automatically interconnected.
What suggests a diagram error?
A holding branch bypassing Stop, inconsistent contact references or forbidden simultaneous states should prompt review of the complete design. Do not diagnose by improvising bridges in the real circuit.
